Diagnostic function aiming at metrological parameters determination (repeatability), the parameters are determined for the actual conditions of use. When speaking of repeatability it may be also used for weighing time optimization. Autotest is operated in an automatic mode thus operator’s time is saved.

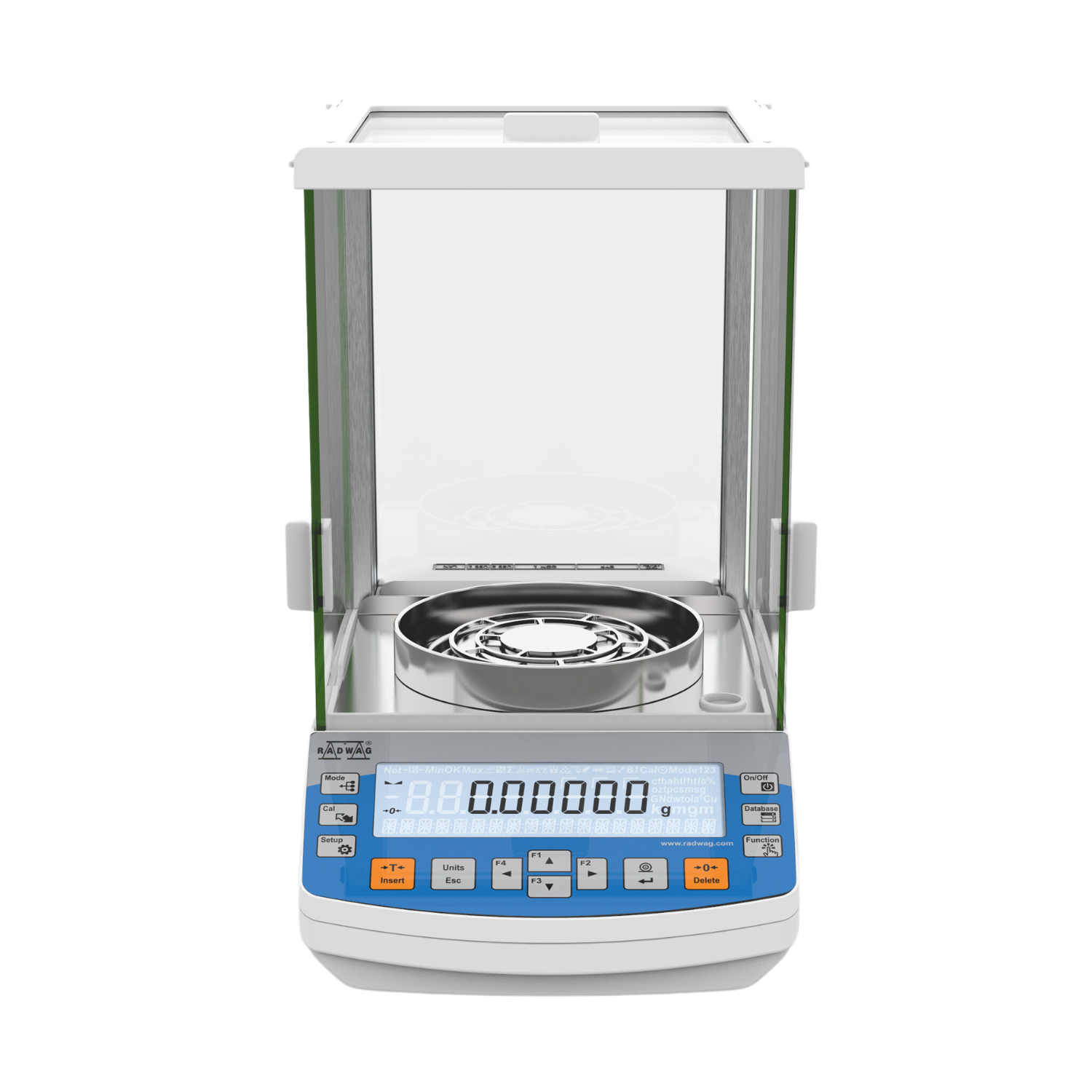

Radwag AS R2 PLUS Analytical Balance
Regular price
$2,139.00
Sale price
$2,139.00
Regular price
Unit price
About this Model:
Radwag AS R2 PLUS Analytical Balance
AS R2 PLUS Analytical Balance
AS R2 PLUS Analytical Balance
Datasheet | |
---|---|
Maximum capacity [Max] | 60 / 220 g |
Minimum load | 1 mg |
Readability [d] | 0.01 / 0.1 mg |
Verification unit [e] | 1 mg |
Tare range | -220 g |
Standard repeatability [5% Max] | 0.012 mg |
Standard repeatability [Max] | 0.08 mg |
Standard minimum weight (USP) | 24 mg |
Standard minimum weight (U=1%, k=2) | 2.4 mg |
Permissible repeatability [5% Max] | 0.02 mg |
Permissible repeatability [Max] | 0.1 mg |
Linearity | ±0.05/0.2 mg |
Stabilization time | 2 s |
Adjustment | internal (automatic) |
OIML Class | I |
Leveling system | manual |
Display | LCD (backlit) |
Weighing chamber doors | manual |
Delivery components | Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover. |
Weighing pan dimensions | ø90 open-work pan + ø85 (option) mm |
Packaging dimensions | 545×455×575 mm |
Net weight | 7 kg |
Gross weight | 10.5 kg |
Protection class | IP 43 |
Relative humidity | 40% — 80% |
Communication interface | 2×RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi® (option) |
Power supply | Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Balance: 12 – 15V DC 0.4A max |
Power consumption max. | 3 W |
Operating temperature | +10 — +40 °C |
