Radwag AS X7 Analytical Balance

Regular price $2,719.00
Sale price $2,719.00 Regular price
Unit price
About this Model:
  • Dual Range Max Capacity: 60g/220g Readability[d]: 0.01mg/0.1mg
  • 7” Graphic Color Touch Screen
  • Formulation (18) Functions & Weighing Modes
  • Touch-Free Operation: 2 Programmable IR Sensors
  • RS232, 2×USB-A, USB-B, Wi-Fi, Ethernet
Download Datasheet
Radwag AS X7 Analytical Balance

Radwag AS X7 Analytical Balance

AS X7 Analytical Balance

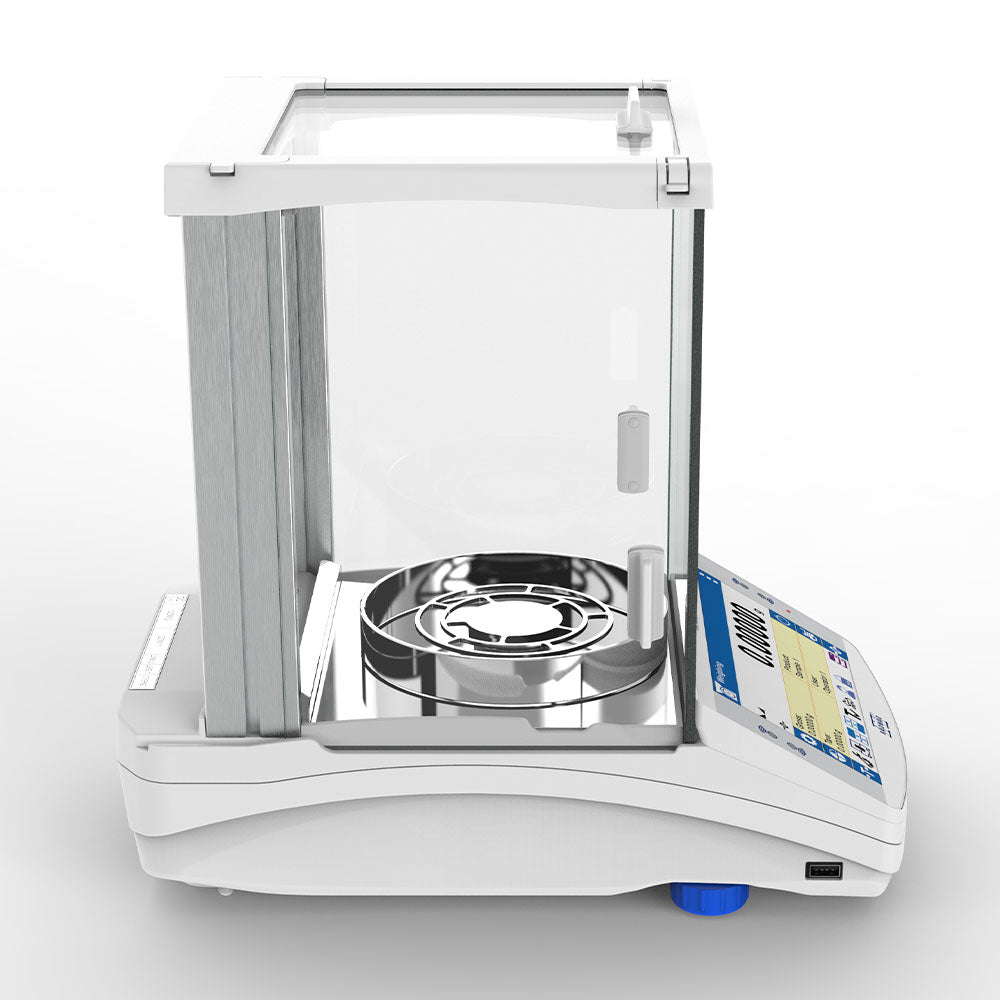

Ergonomic Mechanical Design

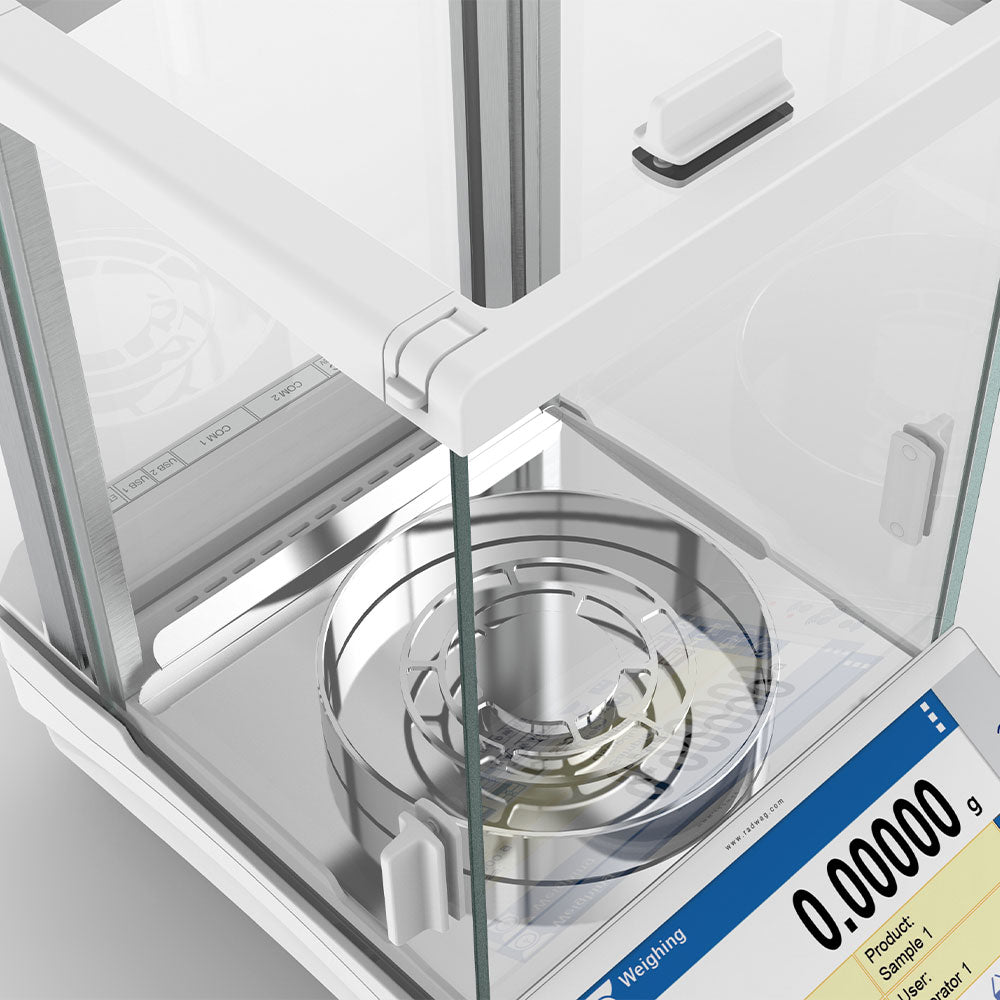

The AS X7 PLUS analytical balance offers a spacious weighing chamber with open- door clearance, enabling easy access to the weighing pan and accommodating laboratory glassware of different sizes.

Its dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, while innovative design features, such as the rimless panes and an aluminum base, ensure balance stability, durability, and long-term reliability in demanding laboratory
environments.

Intuitive Operation

The latest generation touch panel of 7” diagonal stands for comfort of operation, even when you have laboratory gloves on.

The AS X7 analytical balances guarantees simple and intuitive communication due to wide selection of widgets. The widgets can be freely configured in accordance with user needs. Screen customization favors access to information and results directly from the home screen. The user can configure a complete set of buttons and assign it to a particular operation mode. Users can also define info and text fields.

LevelSENSING System

The built-in sensors measure tilt, and display graphic message on the weighing device screen. In accordance with GLP and GMP, the LevelSENSING system simplifies the adjustment, ensures an ongoing control of the level and informs about deviations.

Internal Adjustment

Modernized internal adjustment system guarantees accurate indications in extremely unfavorable conditions.

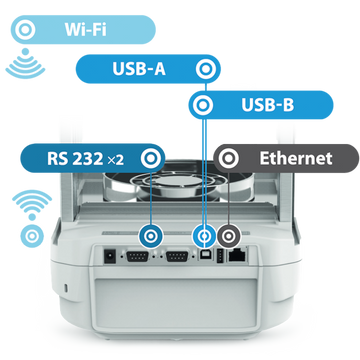

Communication

The functionality of AS X7 balances can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, DB9 tara/print, Ethernet, Wi-Fi®

ALIBI Memory

Data safety is ensured by the ALIBI Memory integrated into AS X7 balances, which enables recording of up to 100,000 weighing results. ALIBI guarantees continuity of data collection over a long period of time.

Databases

The system utilizes 7 databases, the databases include: Operators(max 100 entries), Products(max 5,000 entries), Weighings(max 50,000 entries), Packaging(max 100 entries), Formulations(max 100 entries), Customers(max 1000 entries), ALIBI memory(max 512,000 weighings)

AS X7 Analytical Balance

Ergonomic Mechanical Design

The AS X7 PLUS analytical balance offers a spacious weighing chamber with open- door clearance, enabling easy access to the weighing pan and accommodating laboratory glassware of different sizes.

Its dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, while innovative design features, such as the rimless panes and an aluminum base, ensure balance stability, durability, and long-term reliability in demanding laboratory
environments.

Intuitive Operation

The latest generation touch panel of 7” diagonal stands for comfort of operation, even when you have laboratory gloves on.

The AS X7 analytical balances guarantees simple and intuitive communication due to wide selection of widgets. The widgets can be freely configured in accordance with user needs. Screen customization favors access to information and results directly from the home screen. The user can configure a complete set of buttons and assign it to a particular operation mode. Users can also define info and text fields.

LevelSENSING System

The built-in sensors measure tilt, and display graphic message on the weighing device screen. In accordance with GLP and GMP, the LevelSENSING system simplifies the adjustment, ensures an ongoing control of the level and informs about deviations.

Internal Adjustment

Modernized internal adjustment system guarantees accurate indications in extremely unfavorable conditions.

Communication

The functionality of AS X7 balances can be expanded using the following communication interfaces: USB-A, USB-B, RS 232, DB9 tara/print, Ethernet, Wi-Fi®

ALIBI Memory

Data safety is ensured by the ALIBI Memory integrated into AS X7 balances, which enables recording of up to 100,000 weighing results. ALIBI guarantees continuity of data collection over a long period of time.

Databases

The system utilizes 7 databases, the databases include: Operators(max 100 entries), Products(max 5,000 entries), Weighings(max 50,000 entries), Packaging(max 100 entries), Formulations(max 100 entries), Customers(max 1000 entries), ALIBI memory(max 512,000 weighings)

Datasheet
Maximum capacity [Max] 60 / 220  g
Minimum load 1  mg
Readability [d] 0.01 / 0.1  mg
Verification unit [e] 1  mg
Tare range -220  g
Standard repeatability [5% Max] 0.01  mg
Standard repeatability [Max] 0.06  mg
Standard minimum weight (USP) 20  mg
Standard minimum weight (U=1%, k=2) 2  mg
Permissible repeatability [5% Max] 0.02  mg
Permissible repeatability [Max] 0.1  mg
Linearity ±0.05/0.2  mg
Stabilization time 2  s
Adjustment internal (automatic)
OIML Class I
Leveling system semi-automatic - LevelSENSING
Display 7″ graphic colour touchscreen
Weighing chamber doors manual
Delivery components Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover.
Weighing chamber dimensions 190×190×222  mm
Weighing pan dimensions ø90 open-work pan + ø85 (option)  mm
Packaging dimensions 545×455×575  mm
Net weight 7.3  kg
Gross weight 10.5  kg
Protection class IP 43
Database capacity 7
Touch-free operation 2 IR Sensors
Communication interface RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet
Power supply Adapter:      100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Balance:          12 – 15V DC 0.8A max
Power consumption max. 4 W
Operating temperature +10 — +40  °C
Ambient conditions monitoring (option) THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Relative humidity 40% — 80%

Functions
