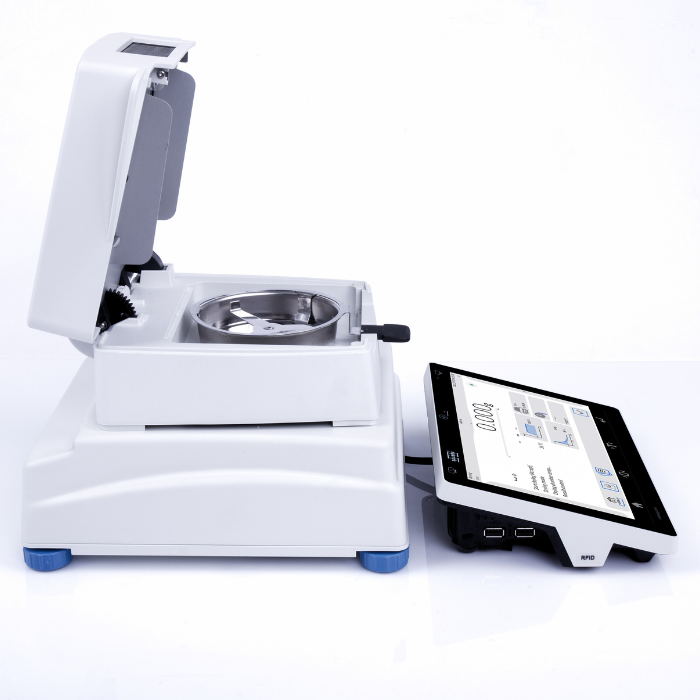

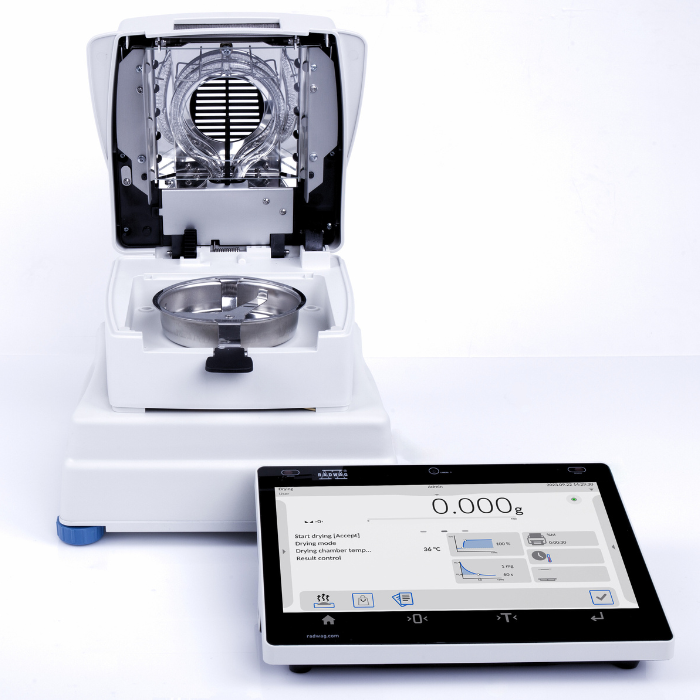

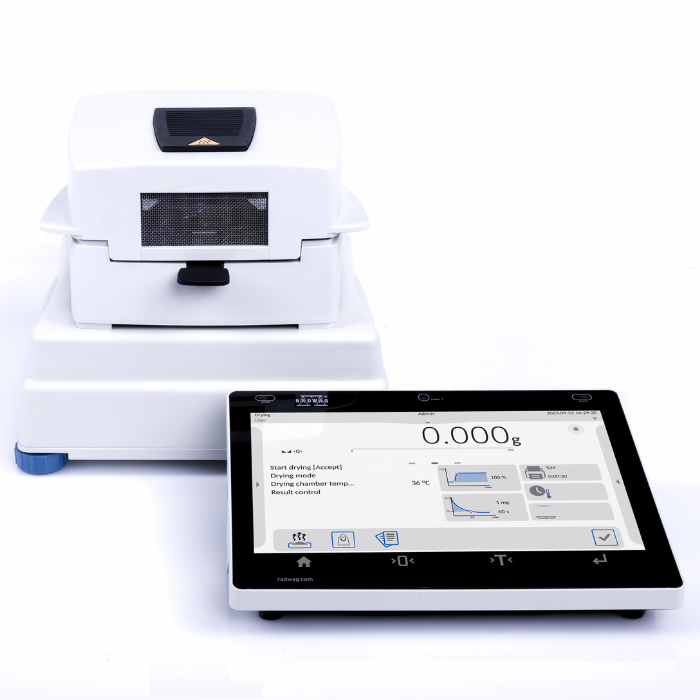

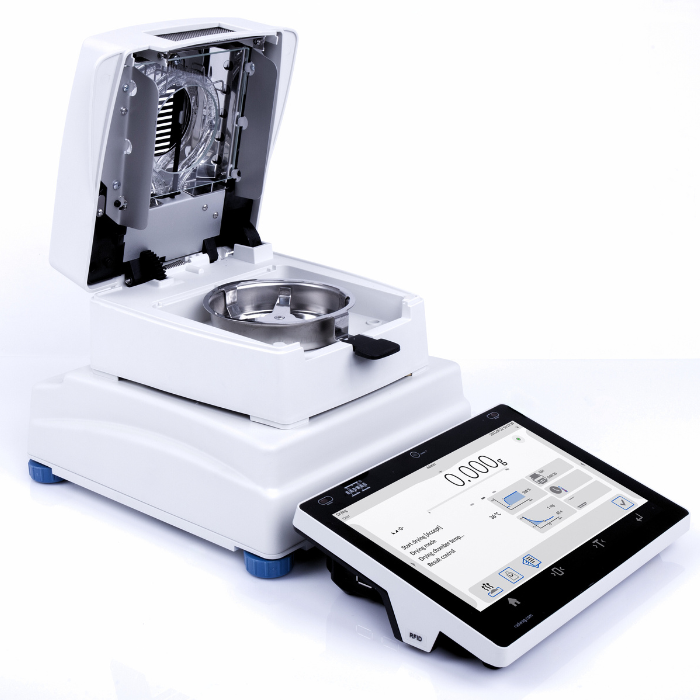

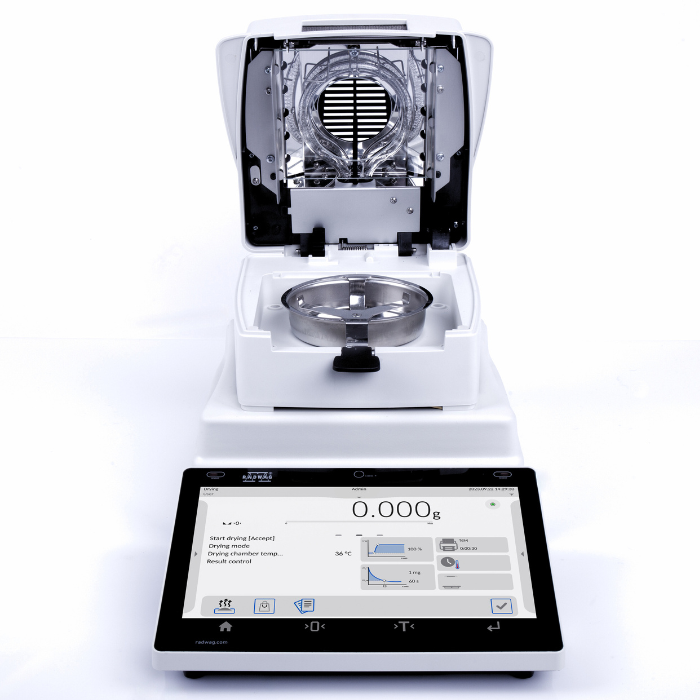

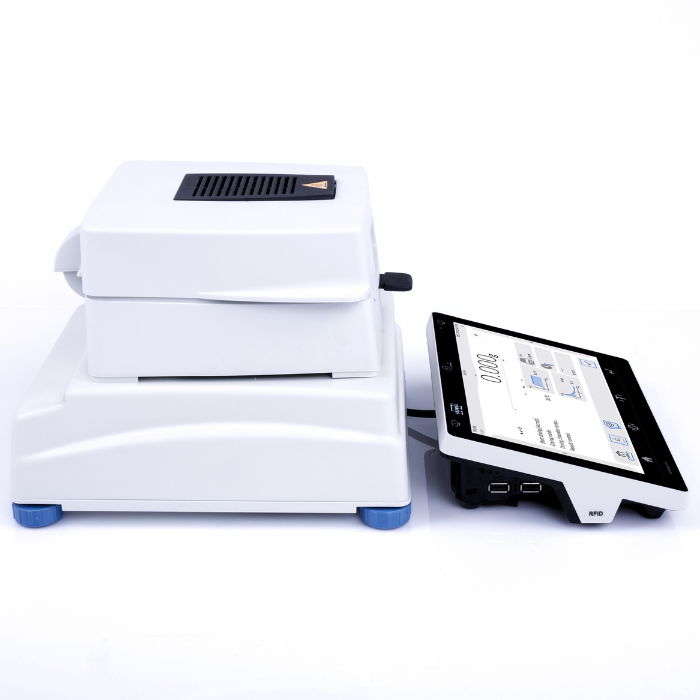

Radwag MA 5Y.NS Moisture Analyzer

Regular price $4,657.00
Sale price $4,657.00 Regular price
Unit price
About this Model:
Download Datasheet

Shipping Lead Time: 4 - 6 Weeks
Size guide
Radwag MA 5Y.NS Moisture Analyzer

Radwag MA 5Y.NS Moisture Analyzer

Radwag MA 5Y.NS Moisture Analyzers

Experience Four Distinct Drying Modes

The MA 5Y Moisture Analyzer revolutionizes moisture analysis with its four targeted drying modes: Standard, Mild, Fast, and Step, designed for unparalleled accuracy and adaptability.

Standard Mode: Your primary choice for diverse materials, offering precise moisture content analysis with reliability.

Mild Mode: Ideal for heat-sensitive samples like leather, applying gentle heat to ensure accurate results without damage.

Fast Mode: Accelerates drying for samples with high moisture content, streamlining the process to quickly lower moisture levels.

Step Mode: Customizable for materials with over 15% moisture, allowing you to set three temperatures for tailored drying conditions.

Equipped with the MA 5Y, achieve precise moisture determination effortlessly, catering to a broad range of materials and moisture levels for various applications.

Selecting the Optimal Drying Temperature

Choosing the right drying temperature is crucial for efficient moisture analysis. The temperature impacts the speed of the drying process and varies depending on the material type. Setting it too low can lead to under-drying and prolonged measurement times, whereas too high a temperature risks damaging the material through burning.

For traditional oven drying methods, the drying temperature is usually set according to industry or factory standards. In the absence of such standards, finding the optimal temperature requires experimental testing to achieve accurate results without compromising sample integrity.

The MA 5Y Moisture Analyzer offers a maximum drying temperature of 160°C, providing a versatile range to accommodate different materials and ensure precise moisture determination.

Four Customizable Finishing Modes

The MA 5Y Moisture Analyzer elevates your drying process with four adaptable finish modes: Automatic, Manual, Time-Defined, and User-Defined. This versatility ensures precision and control in moisture analysis, tailored to meet your specific needs.

Automatic Mode: Set a moisture loss limit over 60 seconds. Once this criterion is met, the drying process concludes automatically, streamlining your workflow.

Manual Mode: Gain direct control by ending the measurement at your discretion with the simple press of the STOP button.

Time-Defined Mode: Specify a duration for the drying process, up to 99 hours and 59 minutes, allowing the measurement to finish after the predetermined time, regardless of the moisture level.

User-Defined Mode: Ideal for achieving a stable dry mass, this mode concludes the drying process when the sample's mass remains constant within 1 mg during a set observation time, indicating the complete removal of volatiles.

With the MA 5Y Moisture Analyzer, experience the ease of tailored drying processes, ensuring efficient and precise moisture determination for various applications.

21 CFR Part 11

We offer a laboratory balance that fully complies with 21 CFR Part 11/ EU GMP Annex 11, providing full data security, electronic signatures, validations, electronic records, and
audit trails.

User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any
combination of these.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to
identify a user.

Radwag MA 5Y.NS Moisture Analyzers

Experience Four Distinct Drying Modes

The MA 5Y Moisture Analyzer revolutionizes moisture analysis with its four targeted drying modes: Standard, Mild, Fast, and Step, designed for unparalleled accuracy and adaptability.

Standard Mode: Your primary choice for diverse materials, offering precise moisture content analysis with reliability.

Mild Mode: Ideal for heat-sensitive samples like leather, applying gentle heat to ensure accurate results without damage.

Fast Mode: Accelerates drying for samples with high moisture content, streamlining the process to quickly lower moisture levels.

Step Mode: Customizable for materials with over 15% moisture, allowing you to set three temperatures for tailored drying conditions.

Equipped with the MA 5Y, achieve precise moisture determination effortlessly, catering to a broad range of materials and moisture levels for various applications.

Selecting the Optimal Drying Temperature

Choosing the right drying temperature is crucial for efficient moisture analysis. The temperature impacts the speed of the drying process and varies depending on the material type. Setting it too low can lead to under-drying and prolonged measurement times, whereas too high a temperature risks damaging the material through burning.

For traditional oven drying methods, the drying temperature is usually set according to industry or factory standards. In the absence of such standards, finding the optimal temperature requires experimental testing to achieve accurate results without compromising sample integrity.

The MA 5Y Moisture Analyzer offers a maximum drying temperature of 160°C, providing a versatile range to accommodate different materials and ensure precise moisture determination.

Four Customizable Finishing Modes

The MA 5Y Moisture Analyzer elevates your drying process with four adaptable finish modes: Automatic, Manual, Time-Defined, and User-Defined. This versatility ensures precision and control in moisture analysis, tailored to meet your specific needs.

Automatic Mode: Set a moisture loss limit over 60 seconds. Once this criterion is met, the drying process concludes automatically, streamlining your workflow.

Manual Mode: Gain direct control by ending the measurement at your discretion with the simple press of the STOP button.

Time-Defined Mode: Specify a duration for the drying process, up to 99 hours and 59 minutes, allowing the measurement to finish after the predetermined time, regardless of the moisture level.

User-Defined Mode: Ideal for achieving a stable dry mass, this mode concludes the drying process when the sample's mass remains constant within 1 mg during a set observation time, indicating the complete removal of volatiles.

With the MA 5Y Moisture Analyzer, experience the ease of tailored drying processes, ensuring efficient and precise moisture determination for various applications.

21 CFR Part 11

We offer a laboratory balance that fully complies with 21 CFR Part 11/ EU GMP Annex 11, providing full data security, electronic signatures, validations, electronic records, and
audit trails.

User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any
combination of these.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to
identify a user.
Datasheet
Maximum capacity [Max] 50  g
Readability [d] 1  mg
Tare range -50  g
Adjustment external
Maximum sample weight 50  g
Heating module metal heater
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Moisture content readability 0.001%
Drying temperature range max 160  °C
Leveling system semi-automatic - LevelSENSING
Display 10″ touchscreen
Weighing chamber automatic
Maximum sample height 20  mm
Weighing pan dimensions ø90, h= 8  mm
Packaging dimensions 476×381×346  mm
Net weight 5.3  kg
Gross weight 6.8  kg
Protection class IP 43
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
Drying method 4 drying profiles (standard, fast, step, mild)
Finish mode 4 modes (automatic, manual, time-defined, user-defined)
Additional functions sample traceability
Communication interface USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
Power consumption 6 W
Heating module power 450 W
Operating temperature +10 — +40  °C
Mass indication control External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Internal adjustment For .IC models only, GLP report
External adjustment For all models, GLP report
Drying temperature control One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer)
Moisture content indication control Certified MV Test Set
Internal / External adjustment Depending on the type of moisture analyzer, GLP report
Drying temperature adjustment Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)

Functions


Samples Drying
×

Samples Drying

Drying process enables to determine moisture content of a given sample by evaporating its free water and other components. The sample's moisture content [%M] is determined by means of precise weighing carried out before and during the drying process.


Dry Mass
×

Dry Mass

Determination of product mass after completed technological, physical and chemical processes enforcing product moisture evaporation. RADWAG moisture analyzers are designed to test the moisture content by heating of the samples, which is done using an IR emitter, a halogen or a metal heater.


Drying Modes
×

Drying Modes

Method for obtaining maximum drying temperature. There are 4 drying profiles: standard, mild, step, fast. The profiles differ by which ensure various dynamics of temperature increase.


ALIBI Memory
×

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements.  Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.


Autotest
×

Autotest

Diagnostic function aiming at metrological parameters determination (repeatability), the parameters are determined for the actual conditions of use. When speaking of repeatability it may be also used for weighing time optimization. Autotest is operated in an automatic mode thus operator’s time is saved.


Statistics
×

Statistics

Statistics function registers and analyses performed measurements. This supplies the user with the following information: Max and Min standard deviation, average value, variance, range et.


IR Sensors
×

IR Sensors

Programmable function supporting the weighing process through control of the following options: sliding weighing chamber doors, printout, zeroing, tarring etc. Especially appreciated wherever preventing the balance from soiling is important.


GLP Procedures
×

GLP Procedures

Diagnostic function allowing to objectively document performed measurements. GLP procedures may be either presented in a short report form or extended one.


Statistical Quality Control
×

Statistical Quality Control

Statistical control for determination of basic statistical criteria: maximum, minimum, standard deviation, mean values for each batch, etc.


Replaceable Units
×

Replaceable Units

This allows you to conveniently convert between grams and pounds as well as other units according to your needs.

The list of available units includes:

  • Gram [g]
  • Milligram [mg]
  • Kilogram [kg]
  • Carat [c]
  • Pound [lb]
  • Ounce [oz]
  • Troy Ounce [ozt]
  • Pennyweight [dwt]
  • Hong Kong Tael [tlh]
  • Singapore Tael [tls]
  • Taiwanese Tael [tlt]
  • Chinese Tael [tlc]
  • Momme [m]
  • Grain [gr]
  • Tical [ti]
  • Newton [N]
  • Mesghal [msg]

Moisture Content Analysis
×

Moisture Content Analysis

The Moisture Content Analysis function on the MA 5Y series Radwag Moisture Analyzers determines the moisture content in samples by measuring the mass loss during drying. Key components include:

  • Initial Measurement: Weighs the sample before drying.
  • Drying Process: Heats the sample to evaporate moisture using various heating modules (halogen, IR, metal heaters).
  • Real-Time Calculation: Continuously monitors and calculates the moisture loss, displaying results in real-time.
  • Results Display: Shows moisture content as a percentage and other units (%MC, %DC).
  • Applications: Crucial for industries like food, pharmaceuticals, and chemicals for quality control.
  • Additional Features: Offers different drying profiles and finish modes for flexibility.

This function ensures precise and real-time moisture content determination, essential for maintaining product quality and regulatory compliance
