Diagnostic function aiming at metrological parameters determination (repeatability), the parameters are determined for the actual conditions of use. When speaking of repeatability it may be also used for weighing time optimization. Autotest is operated in an automatic mode thus operator’s time is saved.
Radwag 5Y PM Precision Balance
Regular price
$6,259.00
Sale price
$6,259.00
Regular price
Unit price
About this Model:
Shipping Lead Time: 4 - 6 Weeks

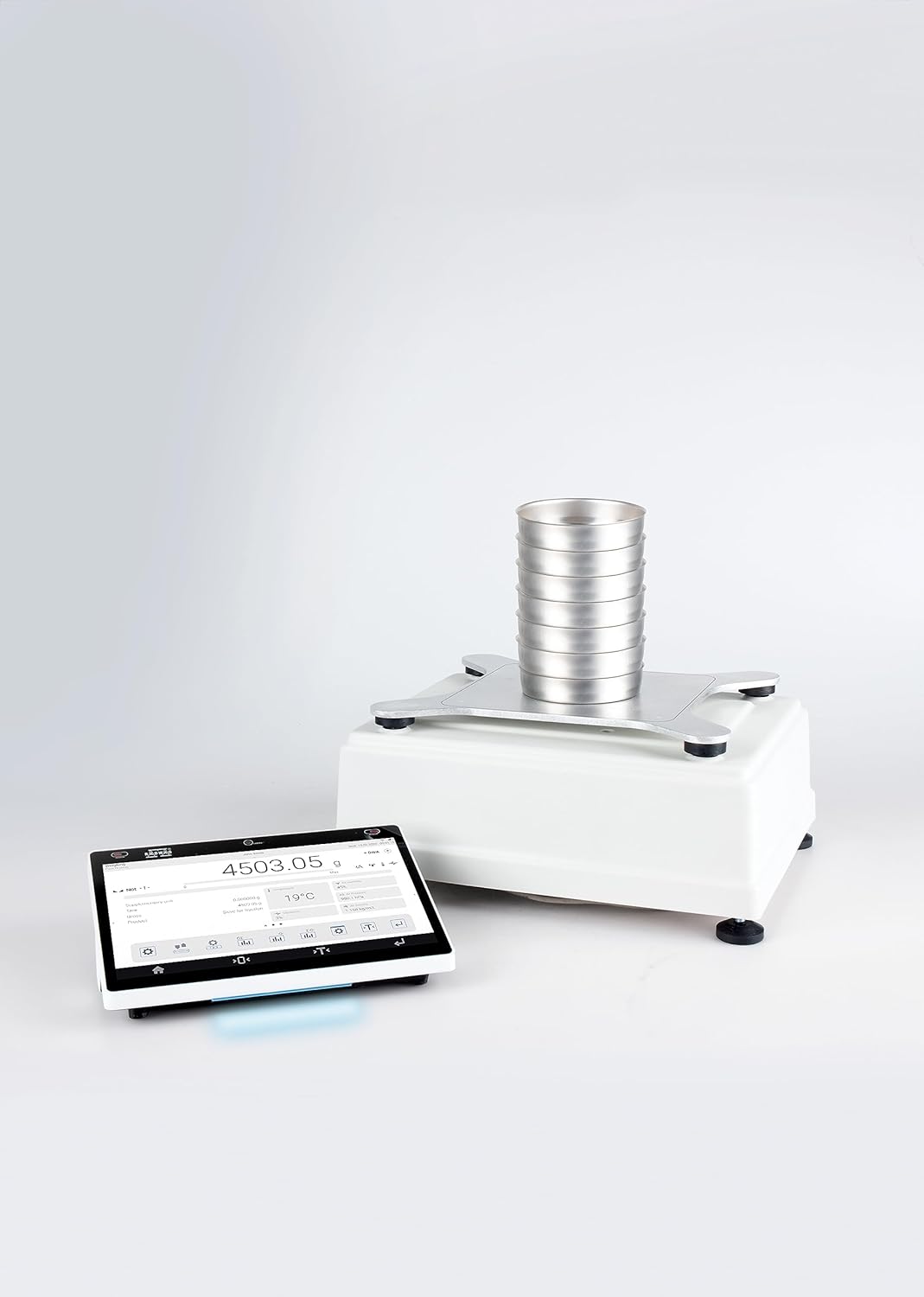

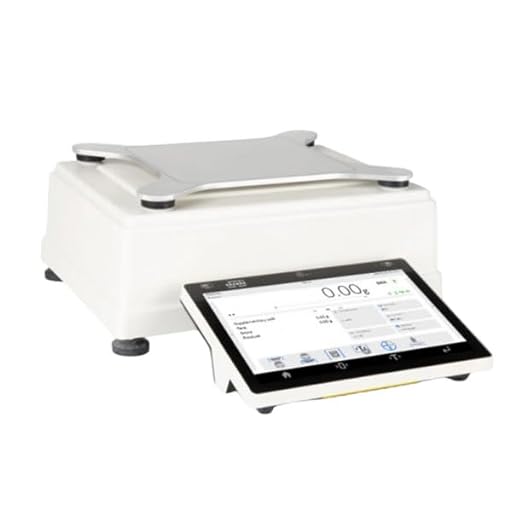

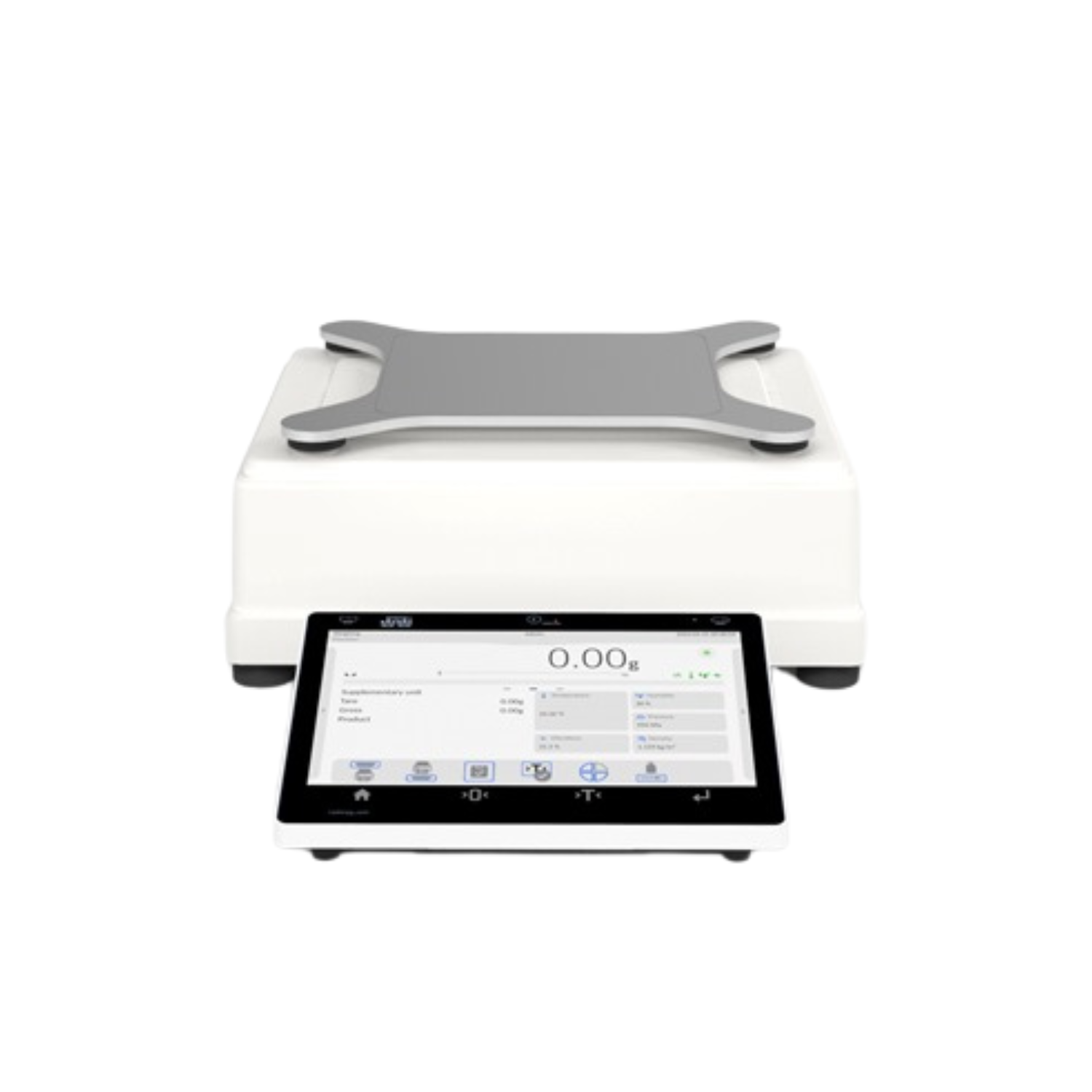

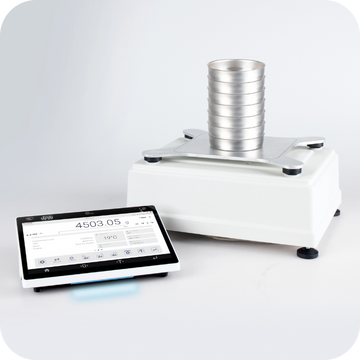

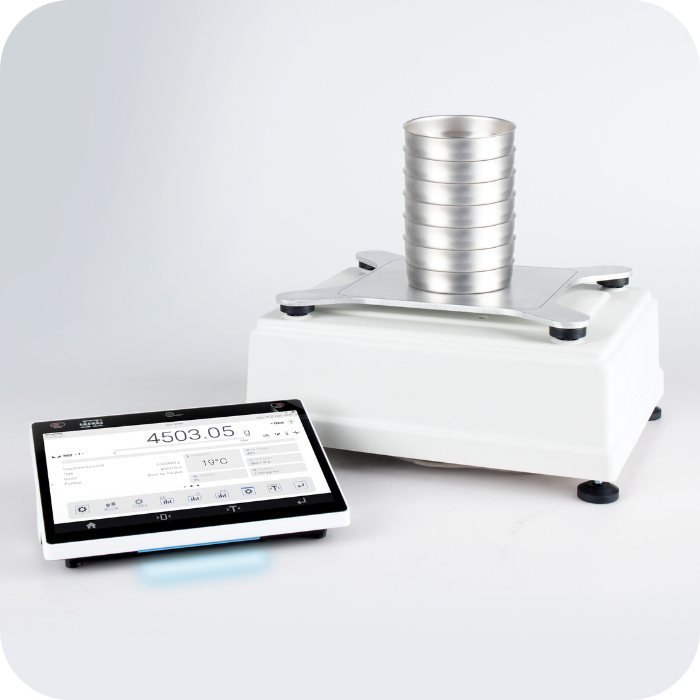

Radwag 5Y PM Precision Balance
5Y PM Precision Balances






5Y PM Precision Balances






Datasheet | |
---|---|
Maximum capacity [Max] | 10 kg |
Minimum load | 0.5 g |
Readability [d] | 0.01 g |
Verification unit [e] | 0.1 g |
Tare range | -10 kg |
Minimum weight (USP) | 8.2 g |
Minimum weight (U=1%,k=2) | 0.82 g |
Repeatability (Max) | 0.01 g |
Repeatability (5% Max) | 0.004 g |
Linearity | ±0.025 g |
Stabilization time | 1 s |
Adjustment | internal (automatic) |
OIML Class | II |
Leveling system | semi-automatic - LevelSENSING |

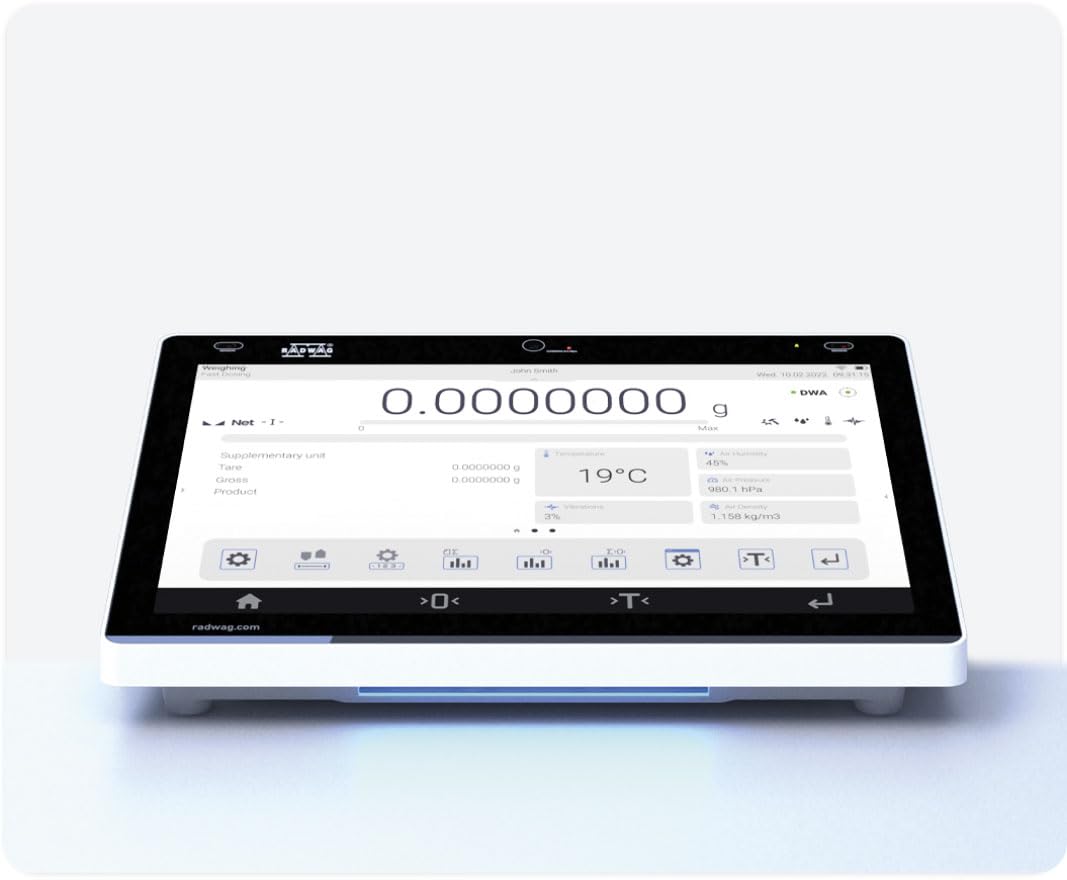

Display | 10″ touchscreen |
Weighing pan dimensions | 200×185 mm |
Packaging dimensions | 520×520×280 mm |
Net weight | 12.96 kg |
Gross weight | 14.2 kg |
Protection class | IP 43 |
Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
Power supply | Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Waga: 12 – 15V DC 1.4A max* |
Operating temperature | +10 — +40 °C |
