Diagnostic function aiming at metrological parameters determination (repeatability), the parameters are determined for the actual conditions of use. When speaking of repeatability it may be also used for weighing time optimization. Autotest is operated in an automatic mode thus operator’s time is saved.

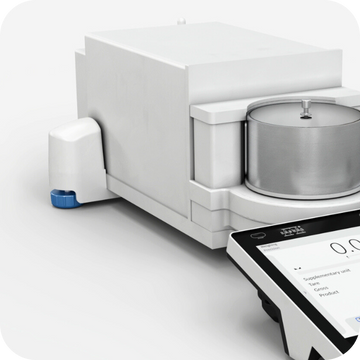

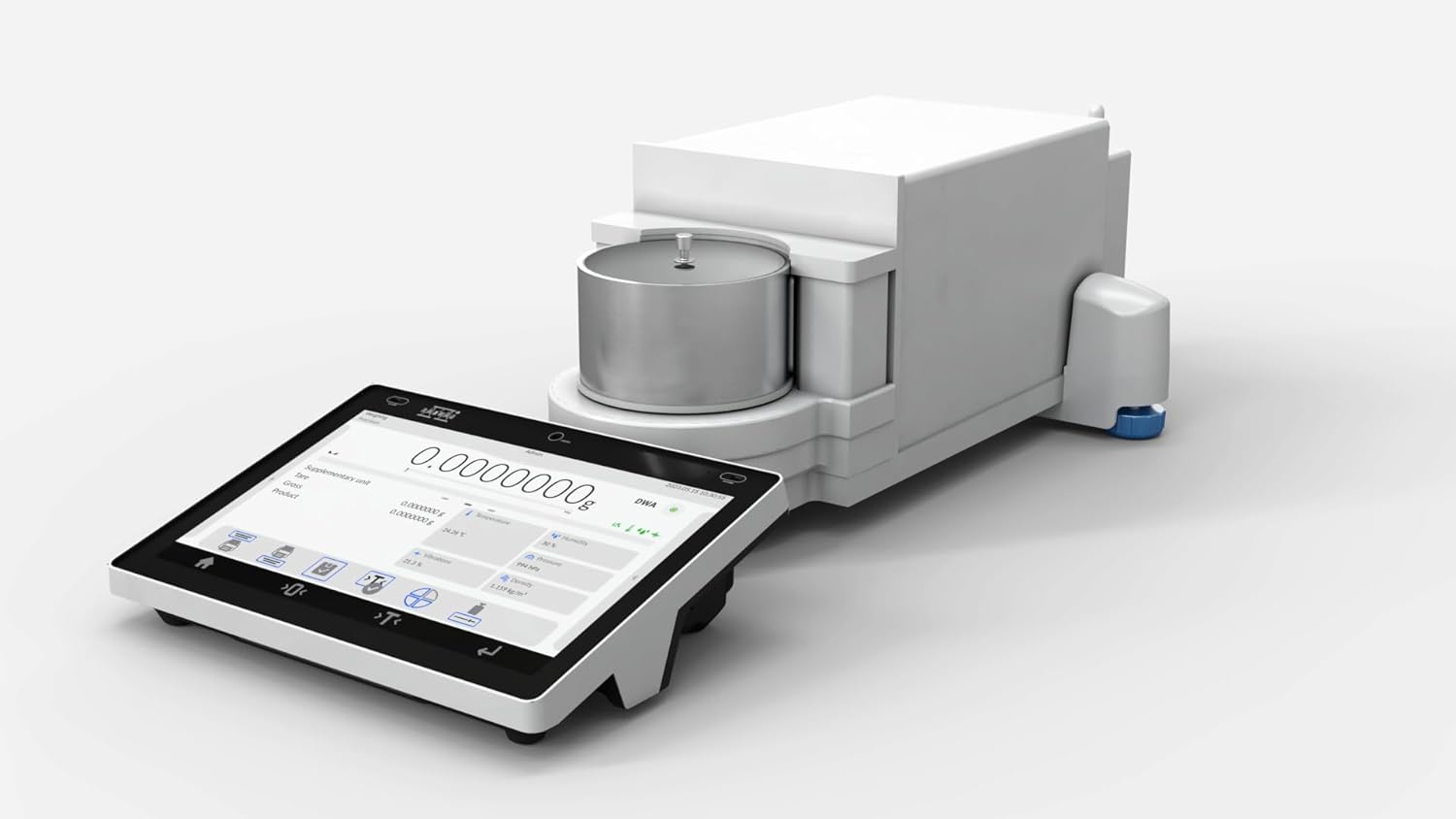

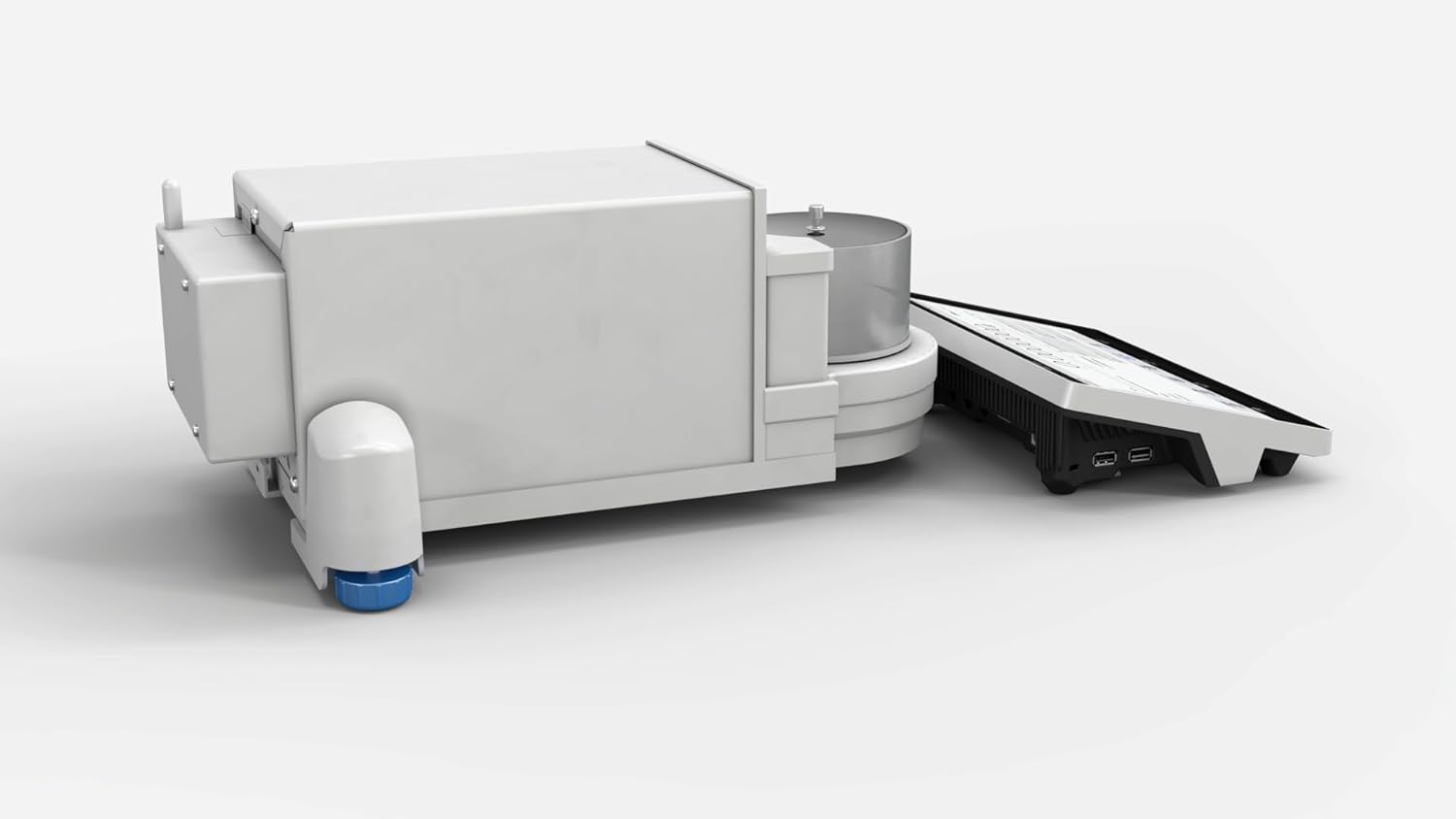

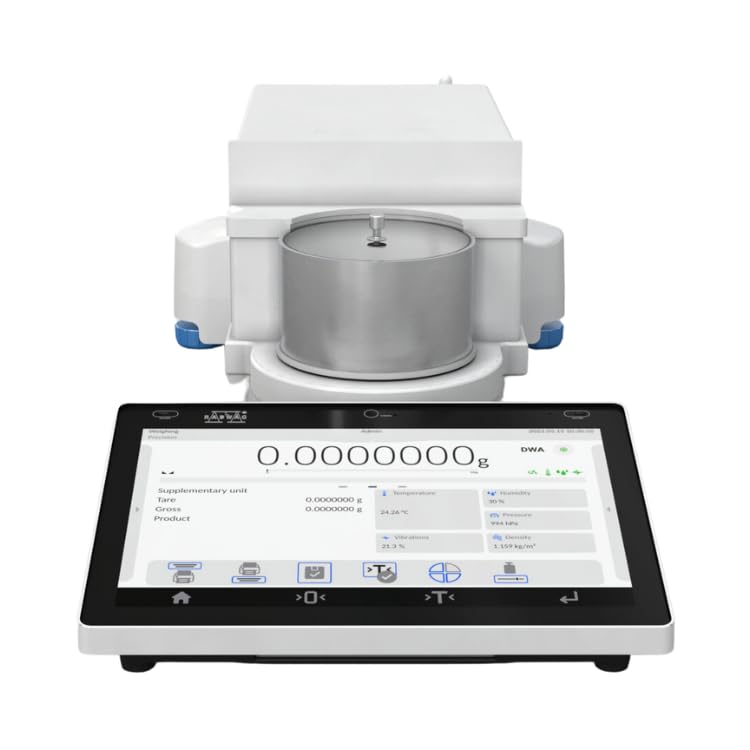

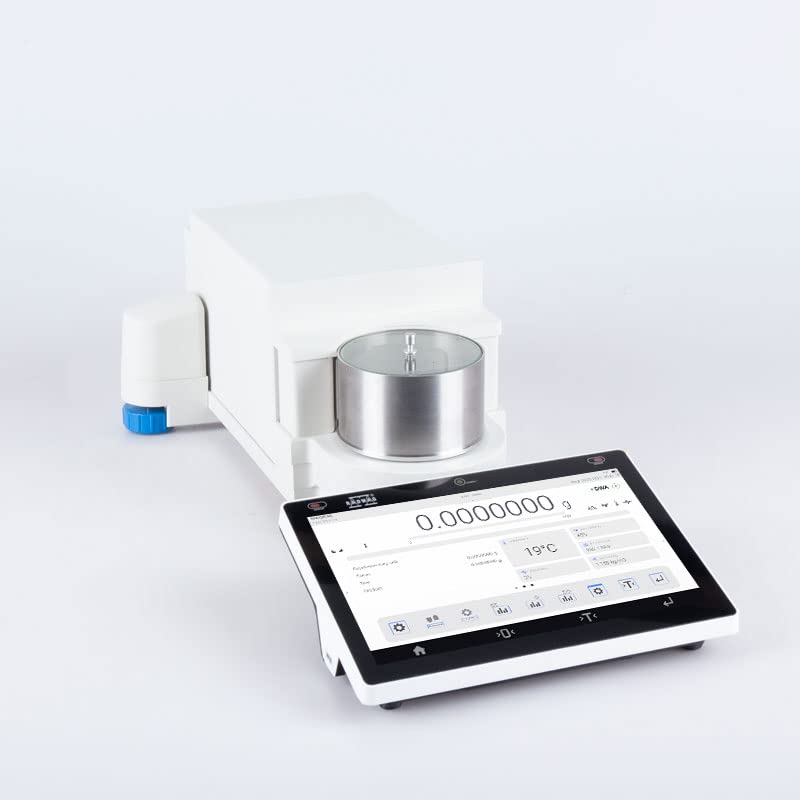

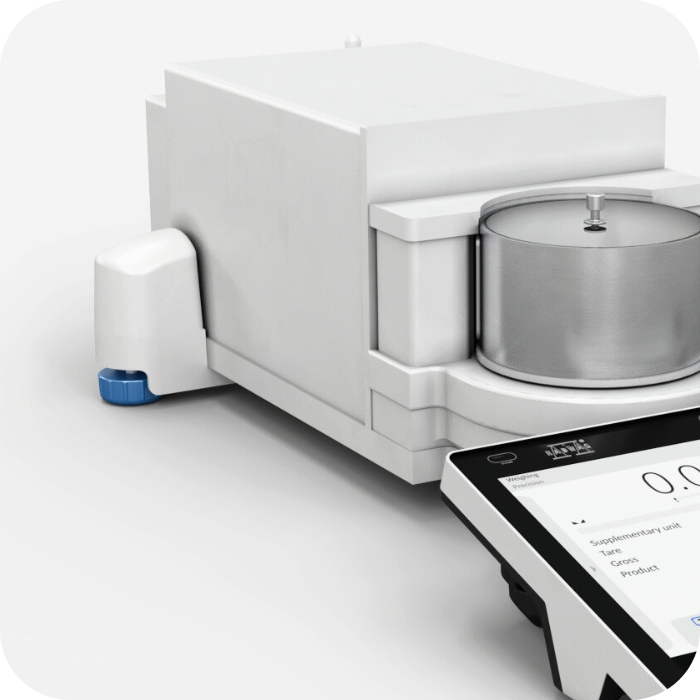

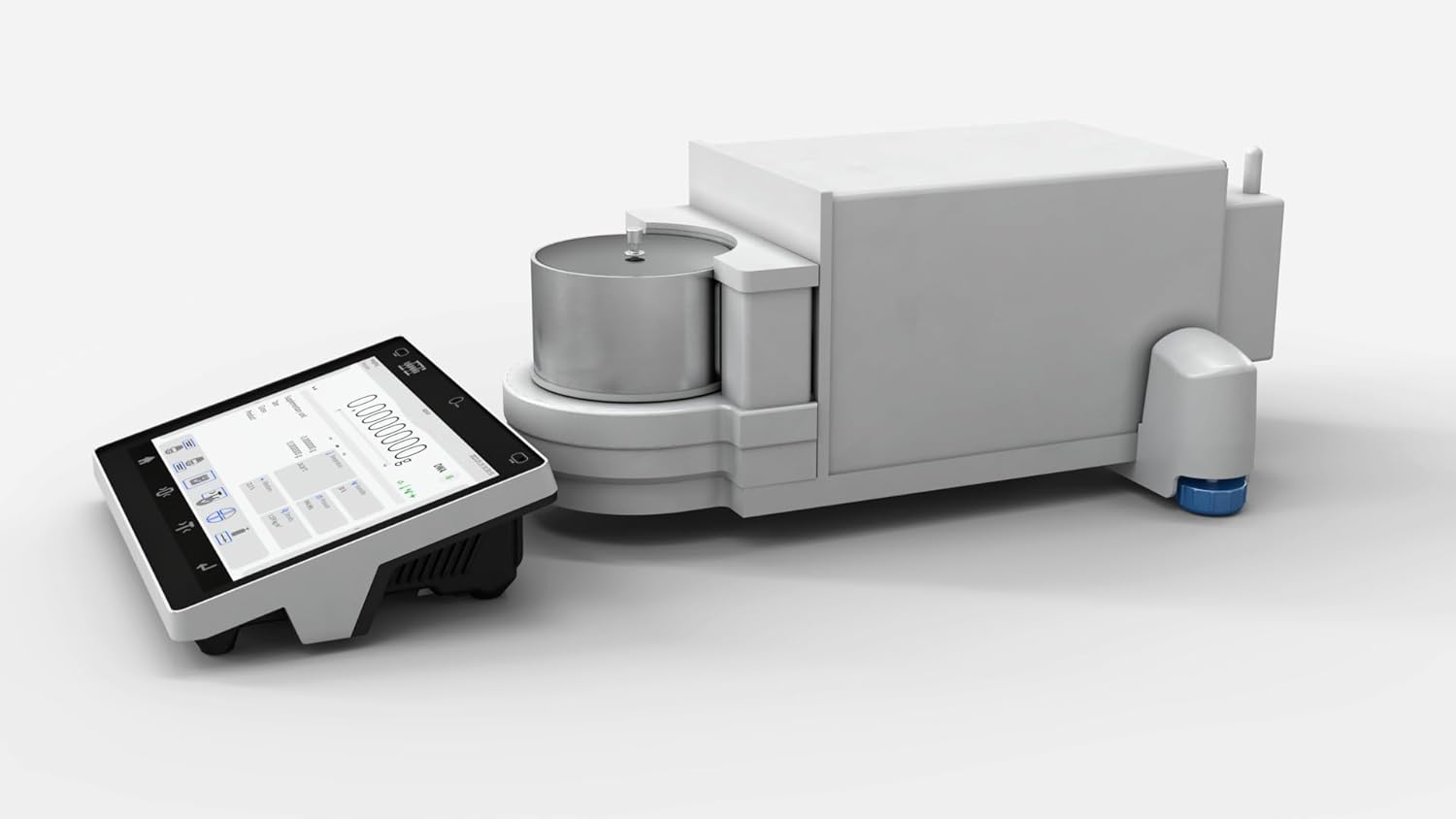

Radwag UYA 2.5Y.F Ultra-Microbalance for Filters
Regular price
$32,057.00
Sale price
$32,057.00
Regular price
Unit price
About this Model:
Shipping Lead Time: 4 - 6 Weeks

Radwag UYA 2.5Y.F Ultra-Microbalance for Filters
Regular price
$32,057.00
Sale price
$32,057.00
Regular price
Unit price
Radwag UYA 5Y.F Ultra-Microbalance






Radwag UYA 5Y.F Ultra-Microbalance






Datasheet | |
---|---|
Maximum capacity [Max] | 2.1 g |
Minimum load | 0.01 mg |
Readability [d] | 0.1 µg |
Verification unit [e] | 1 mg |
Tare range | -2.1 g |
Standard repeatability [5% Max] | 0.15 µg |
Standard repeatability [Max] | 0.35 µg |
Standard minimum weight (USP) | 0.3 mg |
Standard minimum weight (U=1%, k=2) | 0.03 mg |
Permissible repeatability [5% Max] | 0.35 µg |
Permissible repeatability [Max] | 0.6 µg |
Linearity | ±1.5 µg |
Eccentric load deviation | 1.5 µg |
Sensitivity time drift | 1×10⁻⁶/Year×Rt |
Stabilization time | 10 - 20 s |
Adjustment | internal (automatic) |
OIML Class | I |
Leveling system | automatic - Reflex Level System |
Display | 10″ touchscreen |
Delivery components | Ultra-microbalance, terminal, weighing pan, weighing pan for filters, centring ring, glass lid, pincette, brush, fabric dust cover. |
Weighing chamber dimensions | Ø 93.8×35 mm |
Weighing pan dimensions | ø70 + ø16 mm |
Packaging dimensions | 655×755×445 mm |
Net weight | 9.1 kg |
Gross weight | 16.6 kg |
Communication interface | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
Power supply | Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.4A max* |
Operating temperature | +10 — +40 °C |
Operating temperature change rate | ±0.3°C/1h (±1°C/8h) |
Relative humidity change rate | ±1%/h (±4%/8h) |
Relative humidity | 40% — 80% |
