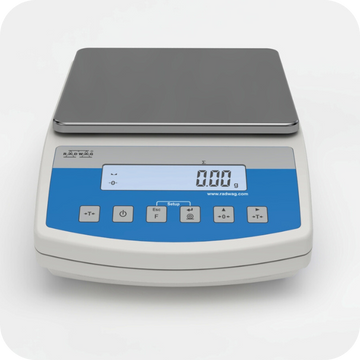

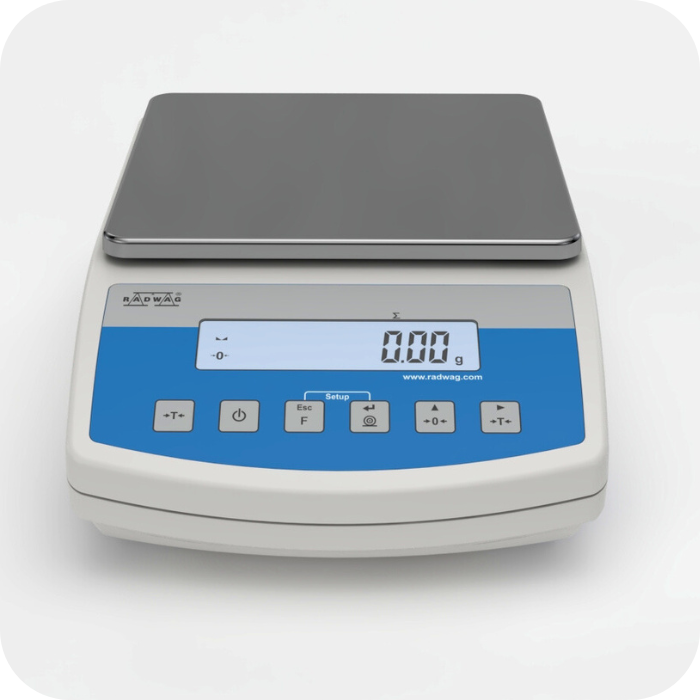

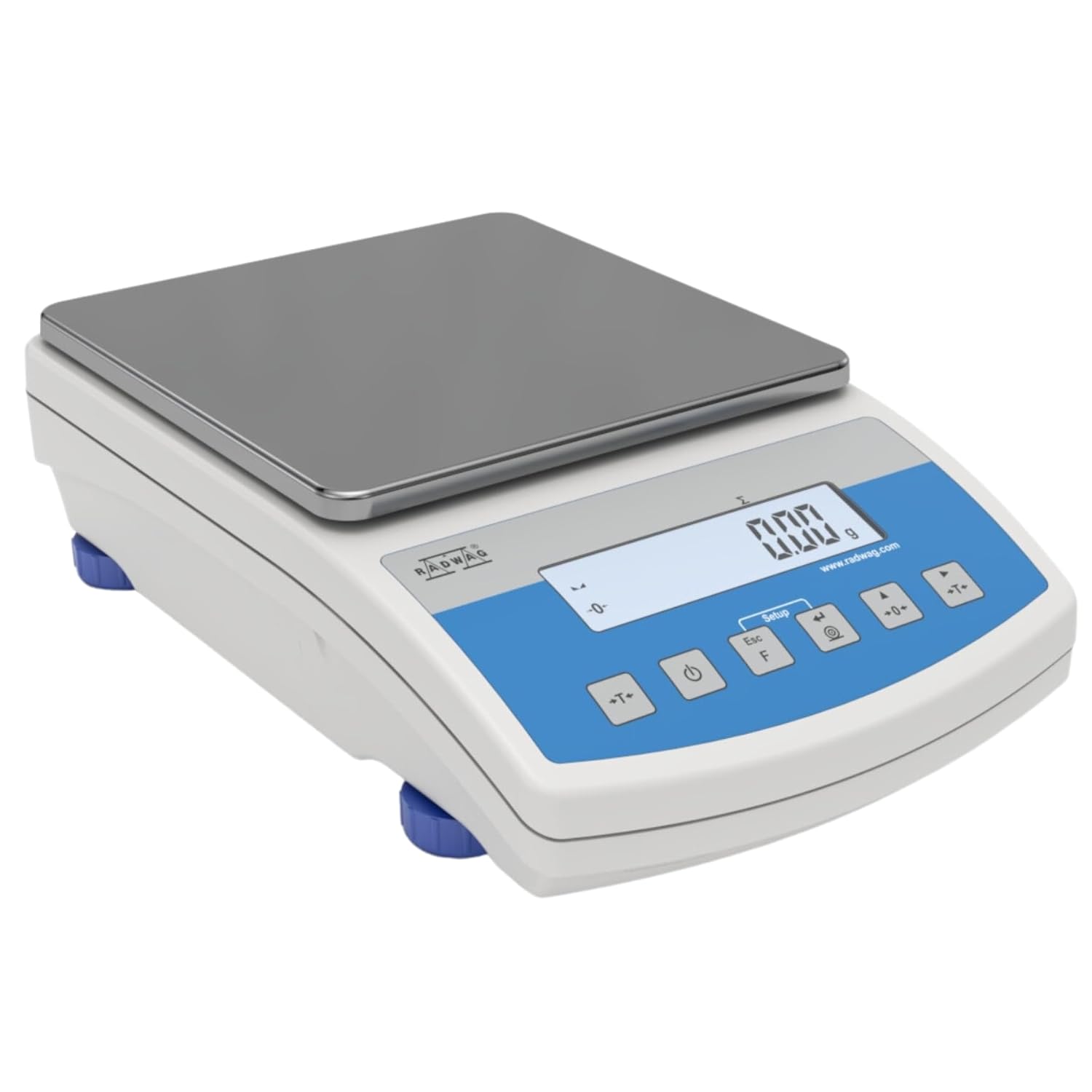

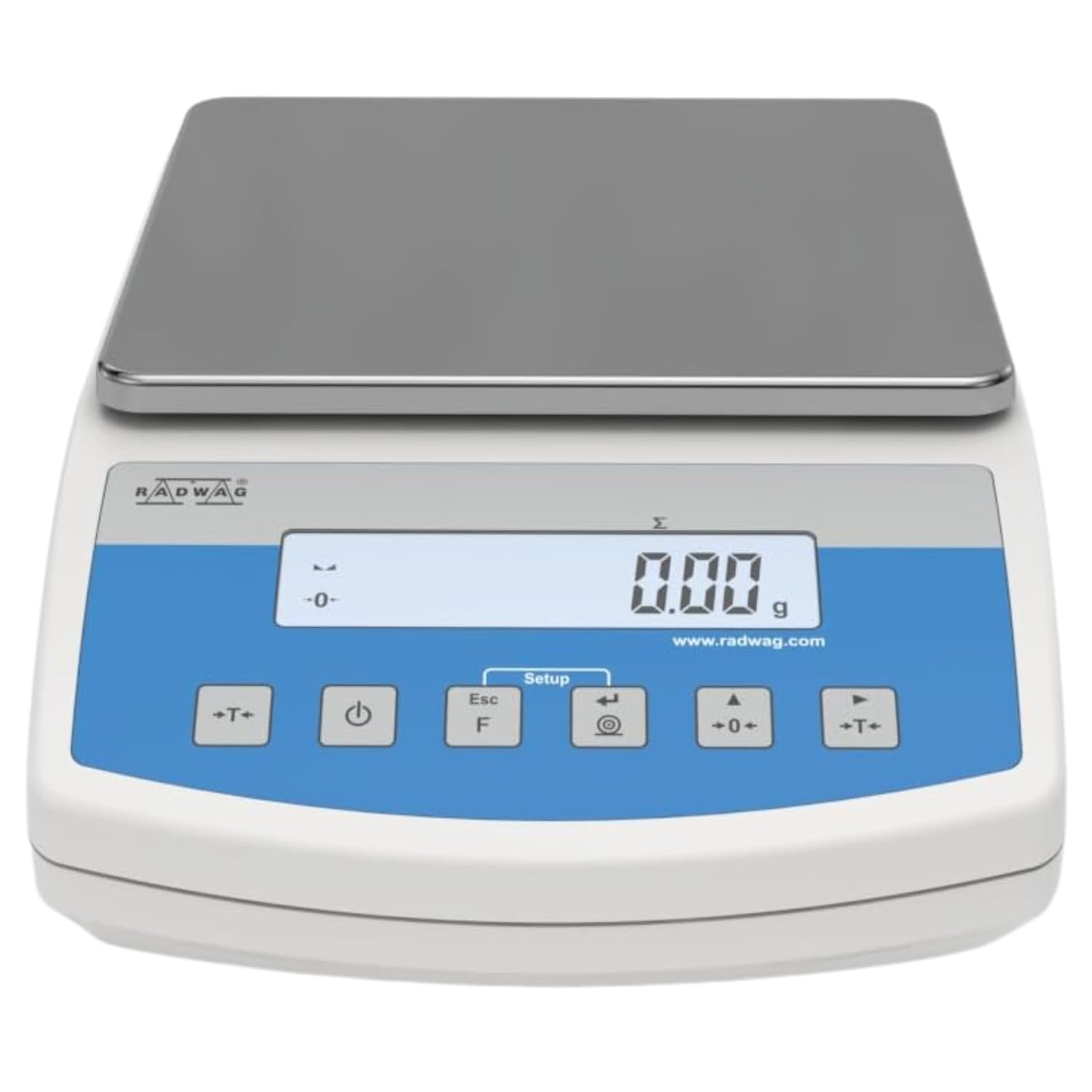

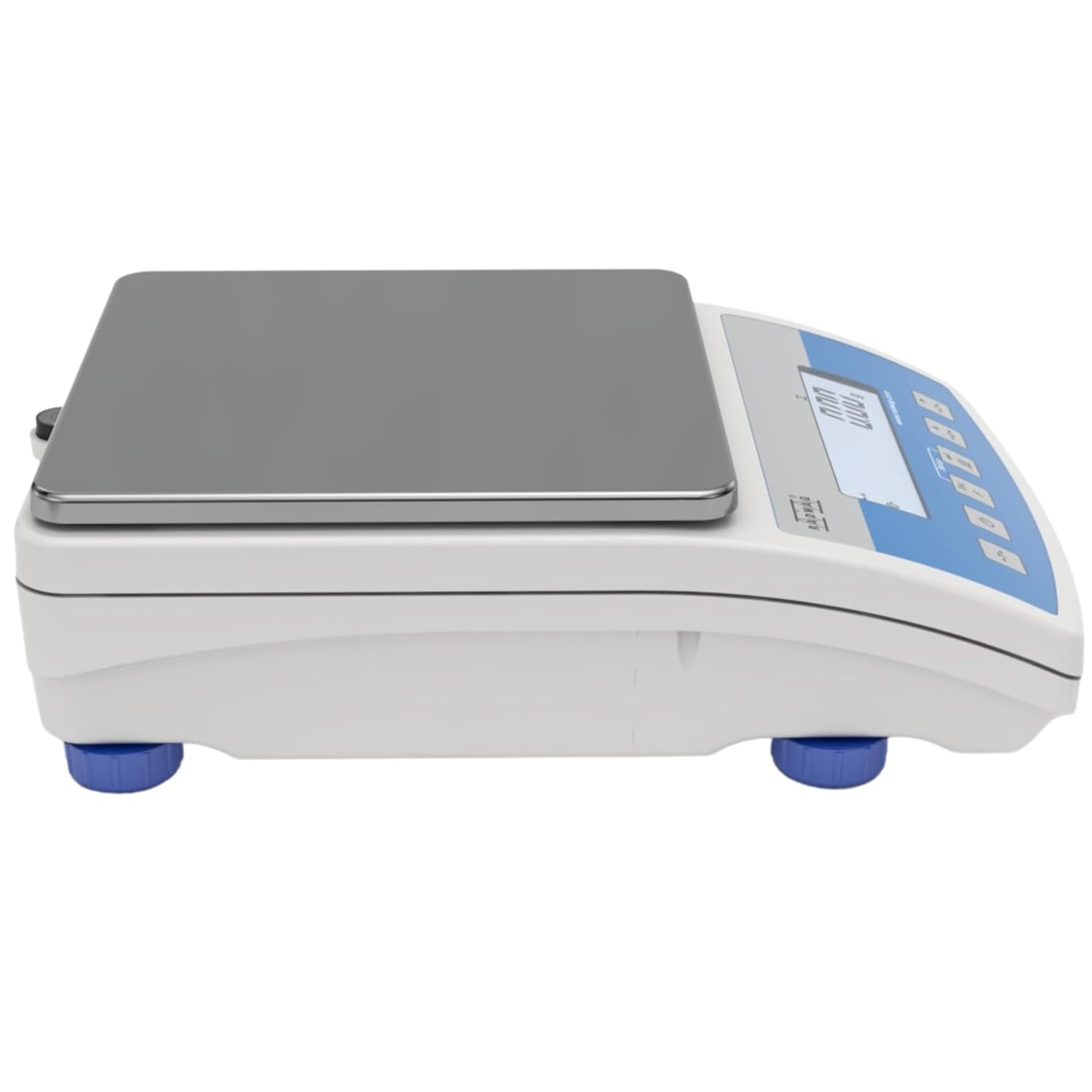

Radwag WLC A2 Precision Balance

Regular price $566.00
Sale price $566.00 Regular price
Unit price
About this Model:
  • Max Capacity: 2kg Readability[d]: 0.01g
  • Totalizing (6) Functions & Weighing Modes
  • Backlit LCD Display
  • 15 Hour Operation Time on Batteries
  • 2×RS232, USB-A, USB-B
Download Datasheet
Size guide
Radwag WLC A2 Precision Balance

Radwag WLC A2 Precision Balance

Radwag WLC Precision Balances

Precision balances enable fast and accurate determination of mass in laboratory and industry. The devices are equipped with an internal battery which allows their operation in places where there is no access to the mains.

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation.

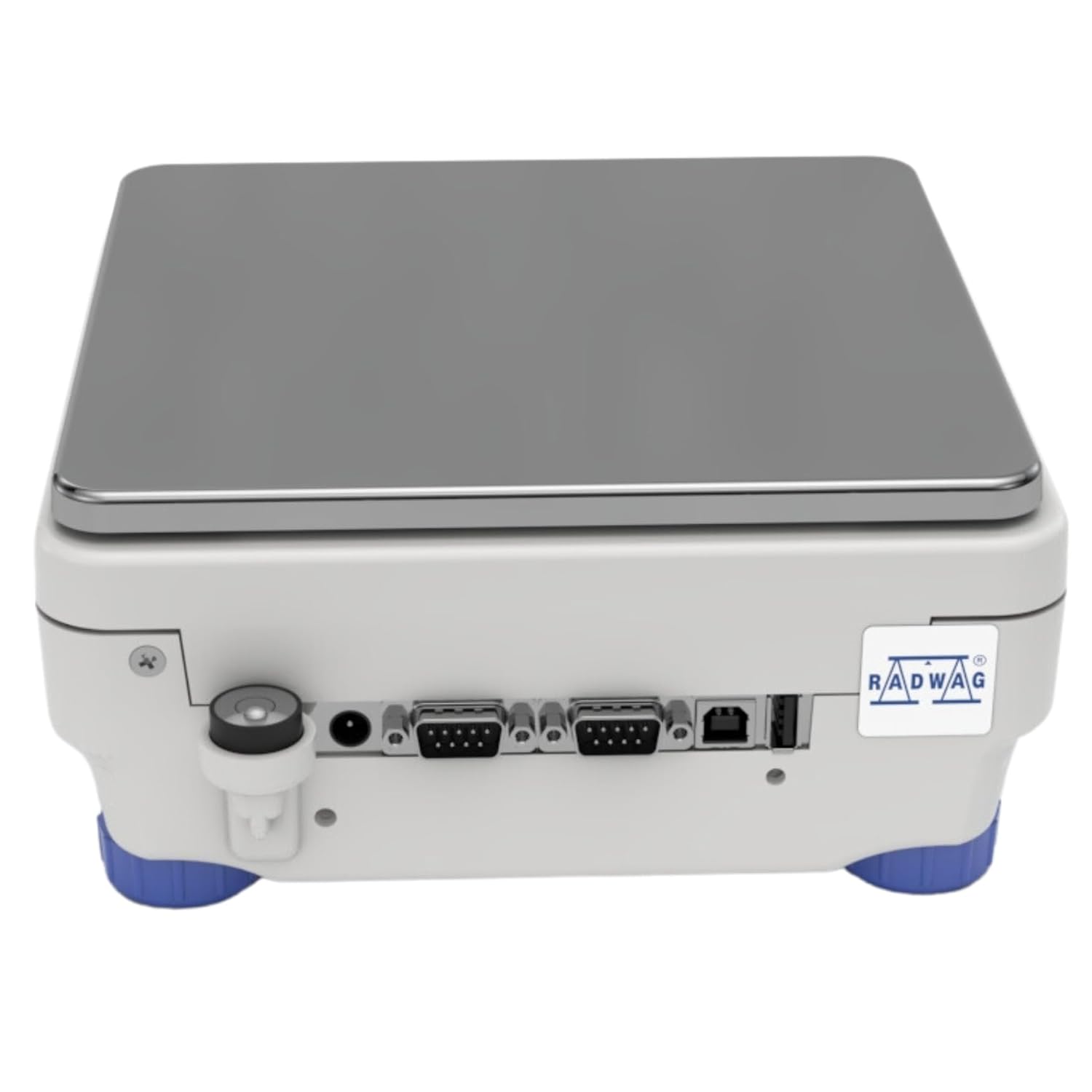

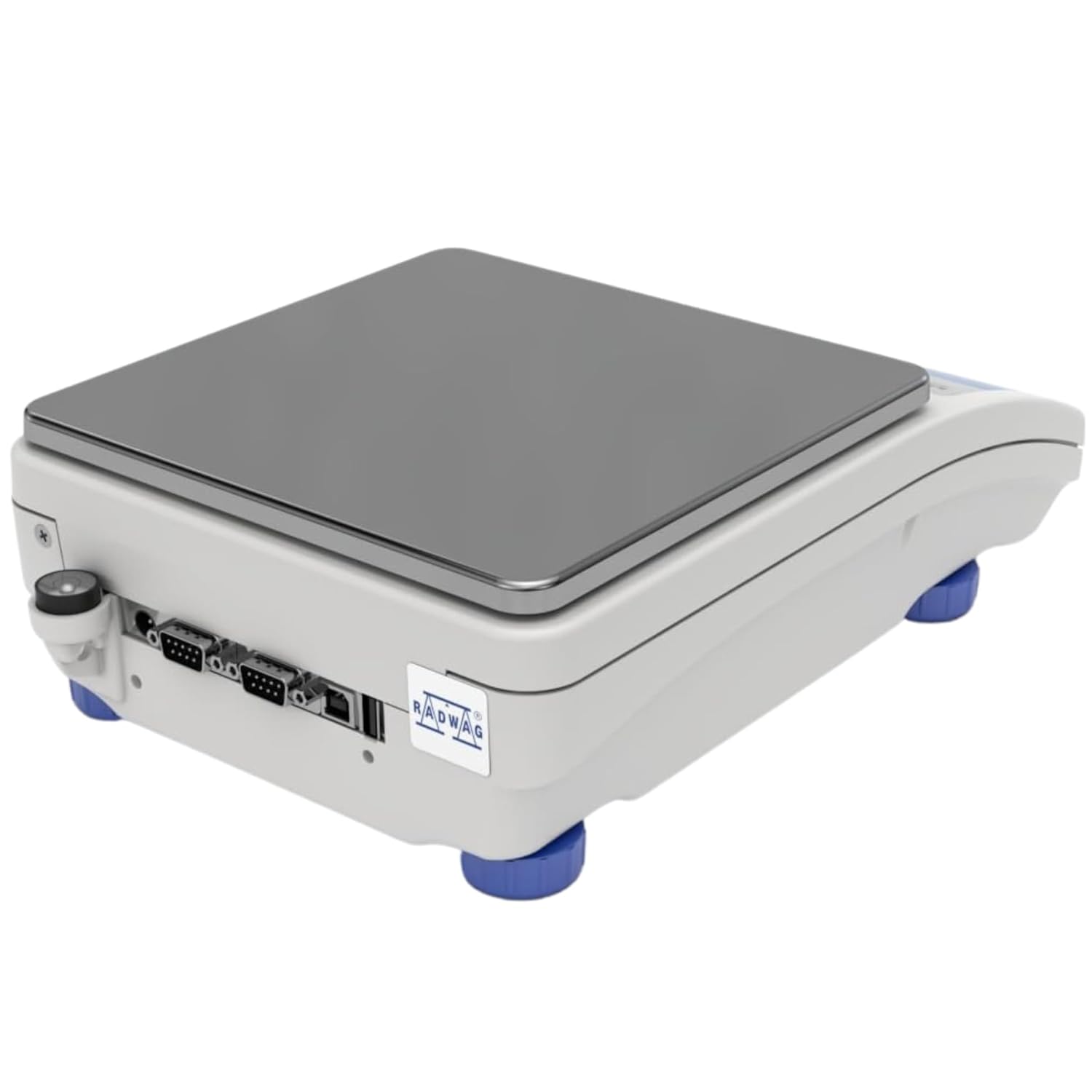

Communication interfaces: 2×RS232, USB type A, USB type B. The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive,
additional display.

The WLC balances feature real-time clock and ALIBI memory. Optionally, they
can be equipped with 4 IN / 4 OUT.

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped memory system.

Radwag WLC Precision Balances

Precision balances enable fast and accurate determination of mass in laboratory and industry. The devices are equipped with an internal battery which allows their operation in places where there is no access to the mains.

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation.

Communication interfaces: 2×RS232, USB type A, USB type B. The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive,
additional display.

The WLC balances feature real-time clock and ALIBI memory. Optionally, they
can be equipped with 4 IN / 4 OUT.

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped memory system.
Datasheet
Maximum capacity [Max] 2  kg
Readability [d] 0.01  g
Verification unit [e] -
Tare range -2  kg
Repeatability 0.01  g
Linearity ±0.03  g
Stabilization time 3  s
Adjustment external
Leveling system manual
Display LCD (backlit)
Weighing pan dimensions 195×195  mm
Packaging dimensions 430×270×190  mm
Net weight 2.8  kg
Gross weight 3.5  kg
Protection class IP 43
Communication interface 2×RS232, USB-A, USB-B
Power supply Adapter:      100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Waga:          10 – 15VDC 0.6A max
Operation time on batteries 15 h (average time)
Operating temperature +15 — +30  °C
Relative humidity 10% — 85% RH no condensation

Functions


Plus/Minus Control
×

Plus/Minus Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualization of weighing result is displayed in a form of a bar graph.


Percent Weighing
×

Percent Weighing

Percent Weighing function is used for comparison of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.


Percent Weighing
×

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.


Parts Counting
×

Parts Counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.


Totalizing
×

Totalizing

Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.


Internal Battery
×

Internal Battery

Internal and rechargeable battery of SLA 6 V type (sealed lead acid) enables device operation without connecting the device to the mains (9h operation). The weighing instrument controls battery status and displays a respective pictogram on the screen.


Peak Hold
×

Peak Hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
