Radwag WLC C2/R Precision Balance

Regular price $898.00
Sale price $898.00 Regular price
Unit price
About this Model:
  • Max Capacity: 60kg Readability[d]: 1g
  • Totalizing (6) Functions & Weighing Modes
  • Backlit LCD Display
  • 10 Hour Operation Time On Batteries
  • 1xRS232 Port
Download Datasheet
Size guide

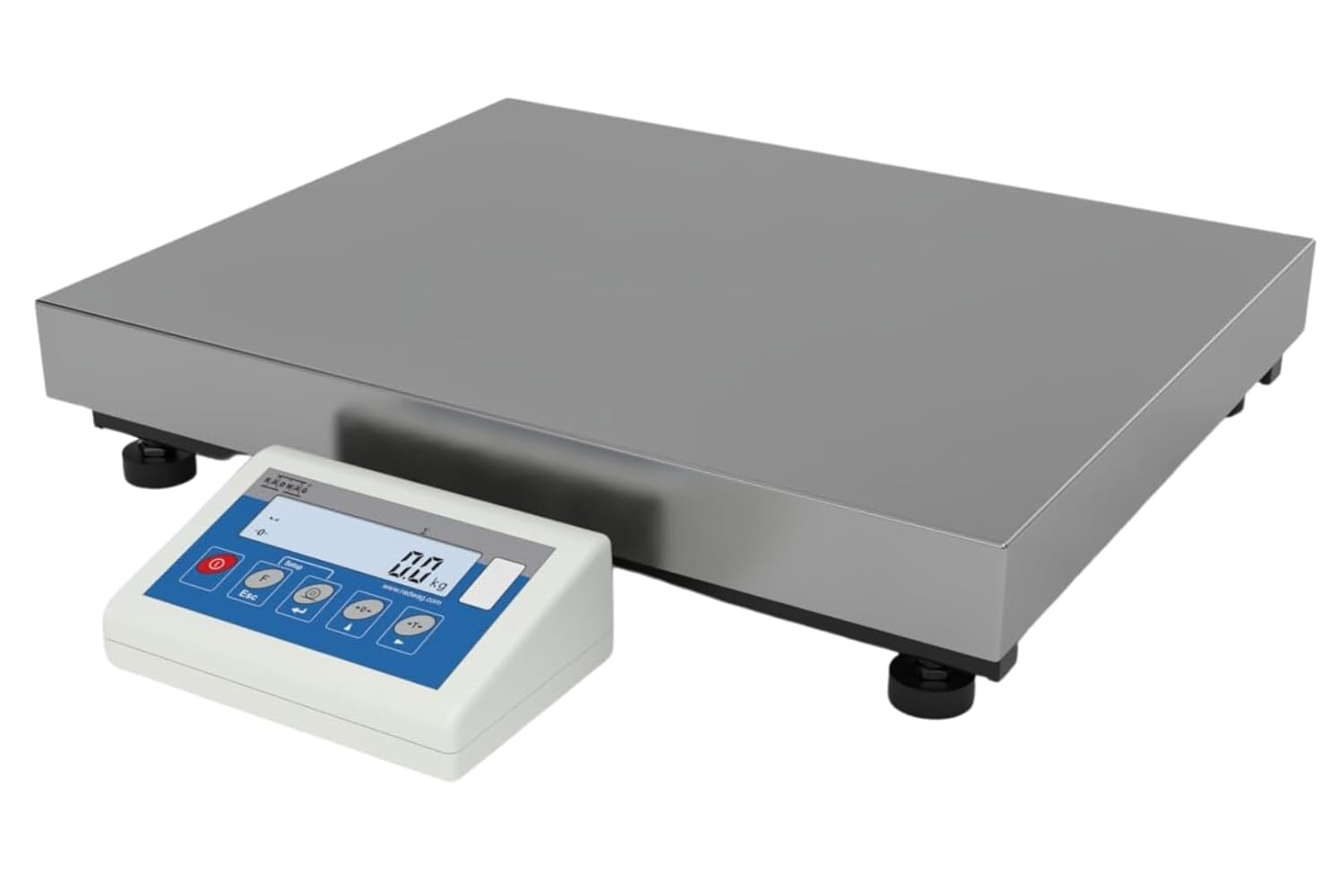

Radwag WLC C2/R Precision Balance

Radwag WLC C2/R Precision Balance

Precision Balance

Precision balances enable fast and accurate determination of mass in laboratory and industry. The devices are equipped with an internal battery which allows their operation in places where
there is no access to the mains.

Communication Interface

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation.

Communication interfaces: 2×RS232, USB type A, USB type B. The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive,
additional display.

The WLC balances feature real-time clock and ALIBI memory. Optionally, they can be equipped with 4 IN / 4 OUT.

ALIBI Memory

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped
memory system.

Precision Balance

Precision balances enable fast and accurate determination of mass in laboratory and industry. The devices are equipped with an internal battery which allows their operation in places where
there is no access to the mains.

Communication Interface

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation.

Communication interfaces: 2×RS232, USB type A, USB type B. The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive,
additional display.

The WLC balances feature real-time clock and ALIBI memory. Optionally, they can be equipped with 4 IN / 4 OUT.

ALIBI Memory

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped
memory system.
Datasheet
Maximum capacity [Max] 60  kg
Minimum load 50  g
Readability [d] 1  g
Tare range -60  kg
Repeatability 1  g
Linearity ±3  g
Stabilization time 3  s
OIML Class II
Leveling system manual
Display LCD (backlit)
Weighing pan dimensions 400×500  mm
Packaging dimensions 720×620×210  mm
Net weight 12.5  kg
Gross weight 13.5  kg
Protection class IP 43
Communication interface RS232
Power supply Adapter:      100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Waga:          10 – 15VDC 0.6A max
Operation time on batteries 10 h (average time)
Operating temperature +15 — +30  °C
Relative humidity 10% — 85% RH no condensation

Functions


+/- Control
×

+/- Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualization of weighing result is displayed in a form of a bar graph.


Percent Weighing
×

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.


Totalizing
×

Totalizing

Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.


Parts Counting
×

Parts Counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.


Internal Battery
×

Internal Battery

Internal and rechargeable battery of SLA 6 V type (sealed lead acid) enables device operation without connecting the device to the mains (9h operation). The weighing instrument controls battery status and displays a respective pictogram on the screen.


Peak Hold
×

Peak Hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
