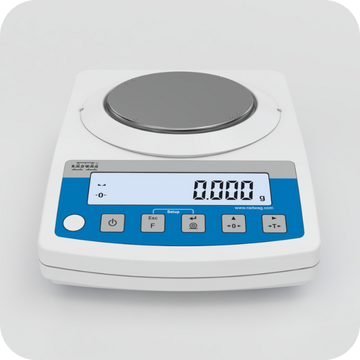

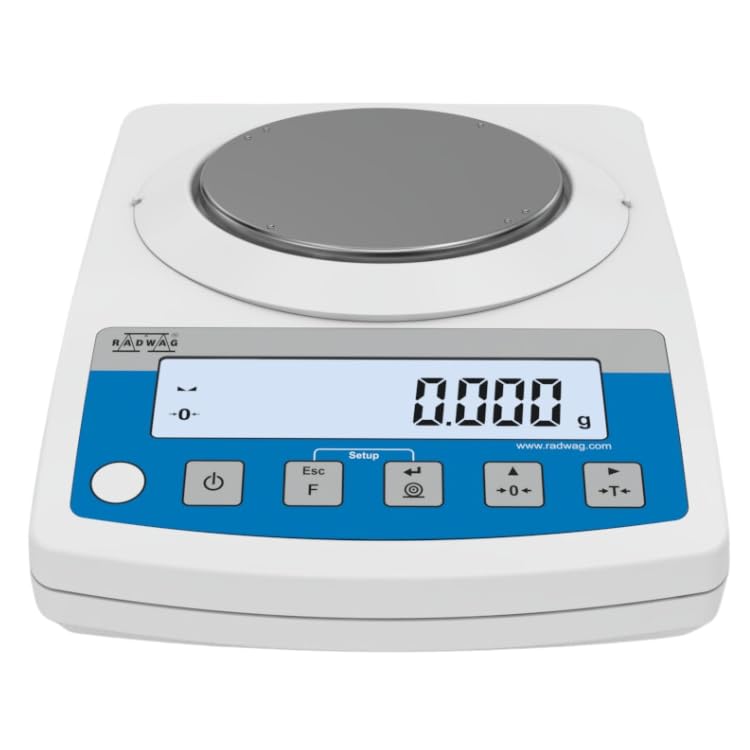

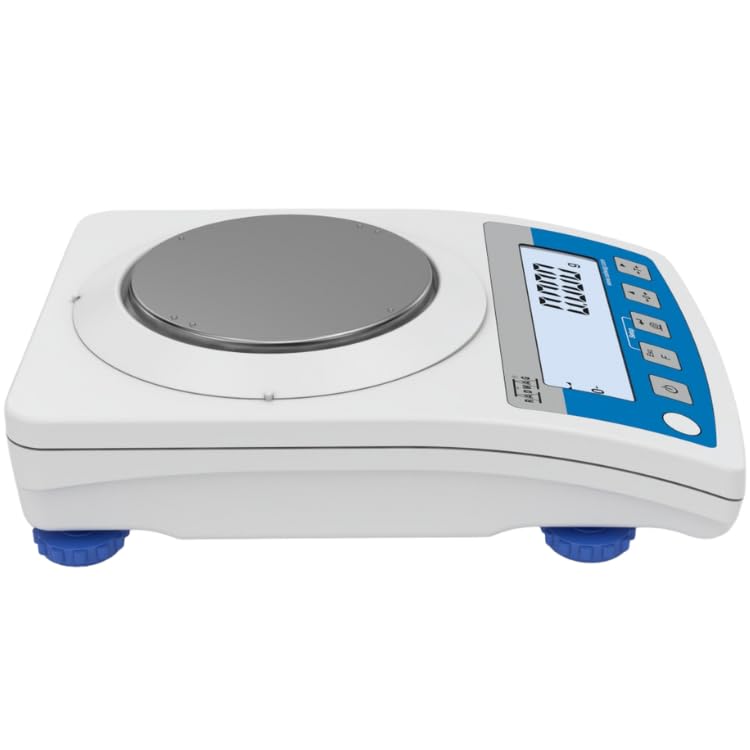

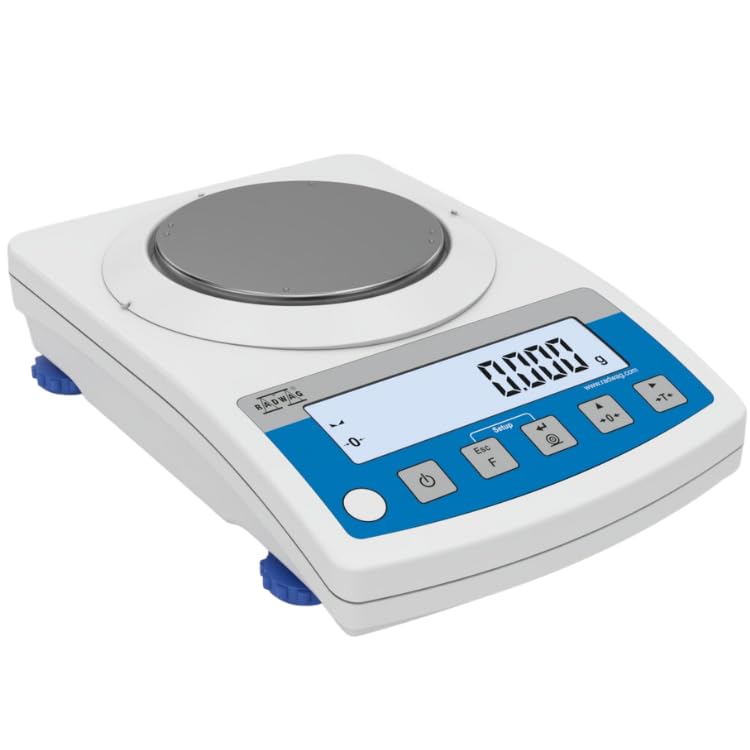

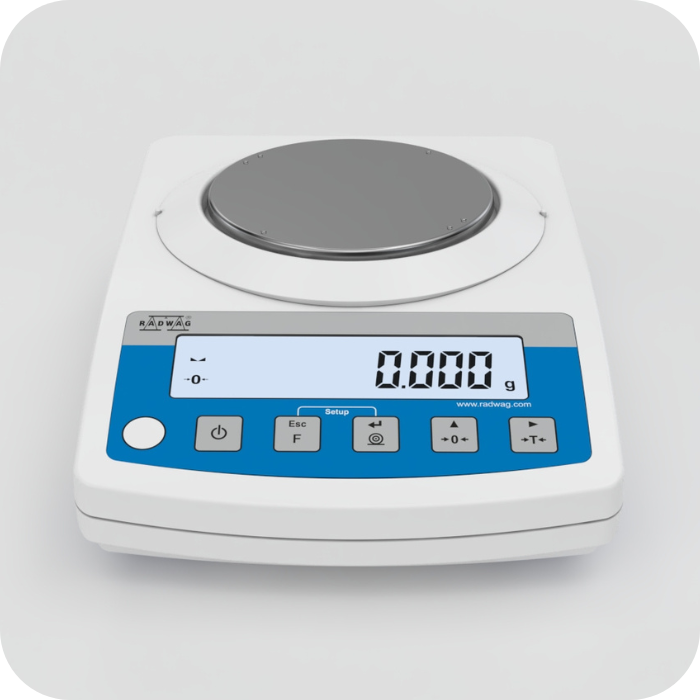

Radwag WTC 200 Precision Balance

Regular price $465.00
Sale price $465.00 Regular price
Unit price
About this Model:
  • Max Capacity: 200g Readability: 0.001g
  • Backlit LCD Display
  • 15h Operation Time on Rechargeable Battery
  • Totalizing (10) Functions and Weighing Modes
  • 2×RS232, USB-A, USB-B
Download Datasheet
Size guide
Radwag WTC 200 Precision Balance

Radwag WTC 200 Precision Balance

Regular price $465.00
Sale price $465.00 Regular price
Unit price

Radwag WTC Precision Balances

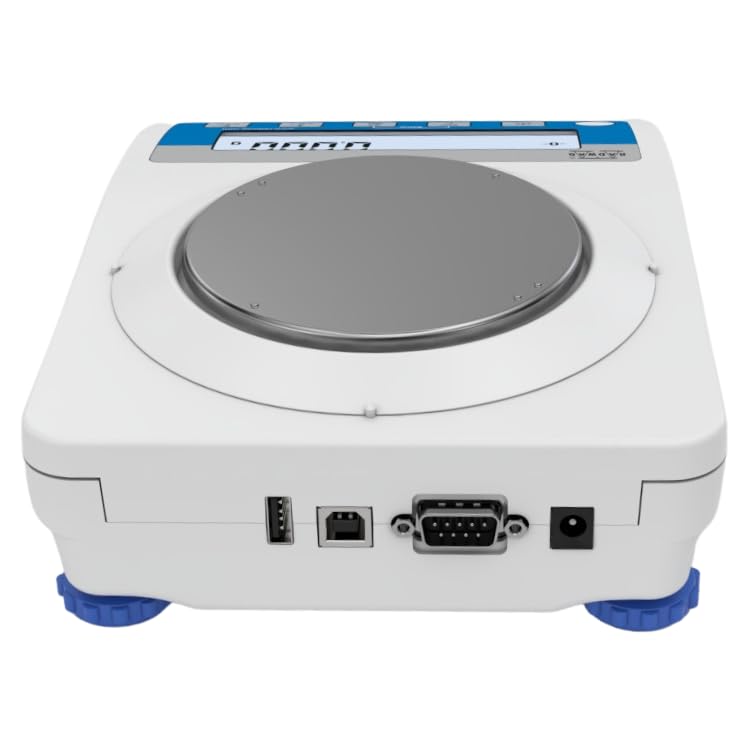

Communication interfaces

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation. Communication interfaces: RS232, USB type A, USB type B.

The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive. The WTC balances feature real-time clock
and ALIBI memory.

Plus/ Minus Control

Our weighing system ensures accurate measurements by comparing the sample's mass to predefined MIN and MAX thresholds, considering the weight correct if it falls within these limits. The results are visually represented through a bar graph, providing a clear and intuitive display of the weighing outcome.

ALIBI Memory

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped
memory system.

Radwag WTC Precision Balances

Communication interfaces

The balance features a stainless steel weighing pan, and a backlit LCD guaranteeing clear weighing result presentation. Communication interfaces: RS232, USB type A, USB type B.

The interfaces enable cooperation with peripheral devices, e.g. printer, computer, USB flash drive. The WTC balances feature real-time clock
and ALIBI memory.

Plus/ Minus Control

Our weighing system ensures accurate measurements by comparing the sample's mass to predefined MIN and MAX thresholds, considering the weight correct if it falls within these limits. The results are visually represented through a bar graph, providing a clear and intuitive display of the weighing outcome.

ALIBI Memory

The "ALIBI" memory feature automatically saves up to 100,000 measurements, including measurement date, time, mass result, tare value, operator information, and product name, with the ability to preview, print, and retain data in a looped
memory system.
Datasheet
Maximum capacity [Max] 200  g
Readability [d] 0.001  g
Tare range -200  g
Repeatability 0.002  g
Linearity ±0.004  g
Stabilization time 2  s
Adjustment external
Leveling system manual
Display LCD (backlit)
Weighing pan dimensions ø100  mm
Packaging dimensions 330×230×140  mm
Net weight 0.96  kg
Gross weight 1  kg
Protection class IP 43
Communication interface RS232, USB-A, USB-B
Power supply Adapter:      100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A Waga:          10 – 15VDC 0.6A max
Operation time on batteries 15 h (average time)
Operating temperature +15 — +30  °C

Functions


+/- Control
×

+/- Control

Control of sample's mass carried out with reference to specified MIN and MAX thresholds. The weight is considered to be correct if it is comprised within threshold values. A graphic visualization of weighing result is displayed in a form of a bar graph.


Percent Weighing
×

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly  exceeded.


Parts Counting
×

Parts Counting

Function using mass measurement for determination of  measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.


Peak Hold
×

Peak Hold

Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.


GLP
×

GLP

Diagnostic function allowing to objectively document performed measurements. GLP procedures may be either presented in a short report form or extended one.


ALIBI Memory
×

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements.  Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.
