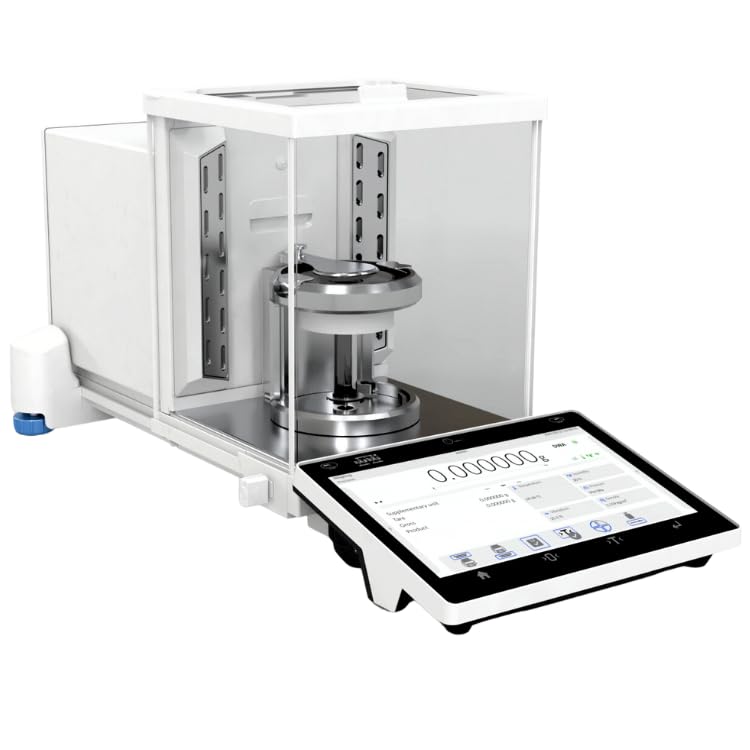

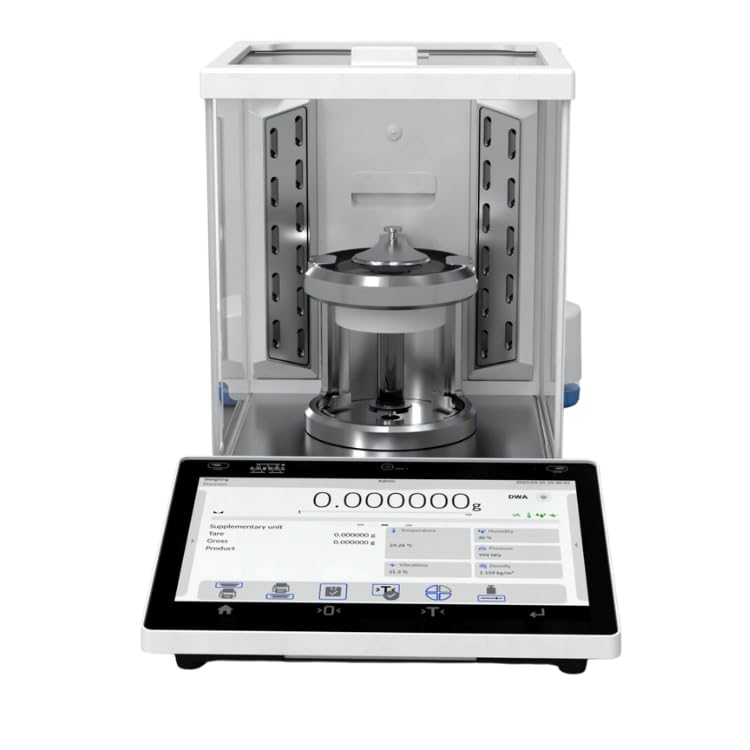

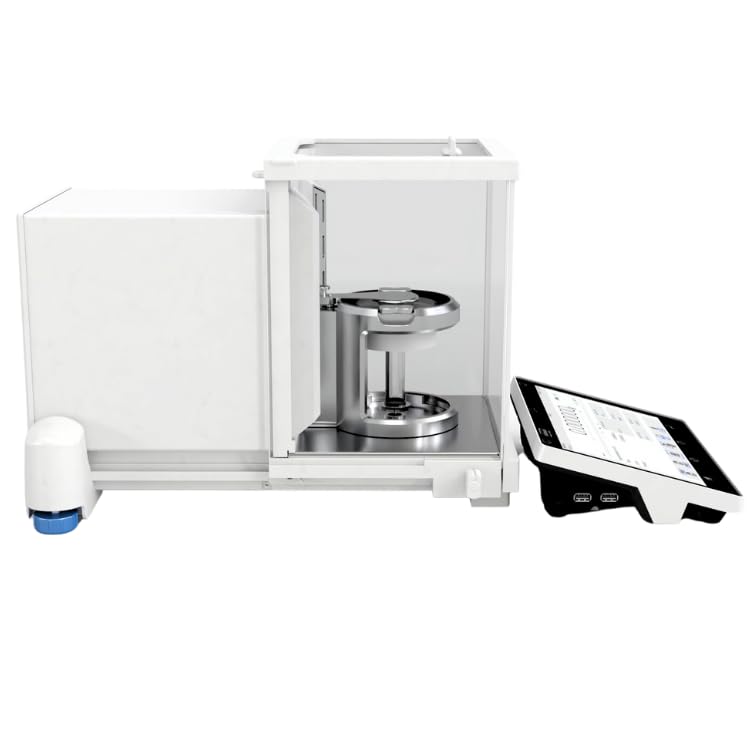

Radwag XA 5Y.M.A.P Microbalance

Regular price $21,987.00
Sale price $21,987.00 Regular price
Unit price
About this Model:
  • Maximum capacity [Max]: 6/21g Readability [d]: 1/2µg
  • 10” Touch Screen
  • Antistatic Ionizer Built Into The Weighing Chamber
  • Pipettes Calibration (19) Functions & Weighing Modes
  • Touch Free Operation (IR Sensors)
Download Datasheet

Shipping Lead Time: 4 - 6 Weeks

Radwag XA 5Y.M.A.P Microbalance

Radwag XA 5Y.M.A.P Microbalance

Radwag XA 5Y.M.A Microbalances

Precision Microbalance

The XA M.A Series is a high- precision balance that features a 10-inch display and a hotspot feature for use on any connected device. It also includes a smart min weight feature, an ionizer for sample charge neutralization, and offers two-point adjustment for
enhanced precision.

Widgets

Our display system goes beyond conventional balance sheets, offering an array of interactive widgets that provide real-time updates.

With a user-friendly interface, our display seamlessly integrates diverse data streams, empowering you to make informed decisions and maintain optimal conditions for your
weighing needs.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

21 CFR Part 11

We offer a laboratory balance that fully complies with 21 CFR Part 11/ EU GMP Annex 11, providing full data security, electronic signatures, validations, electronic records, and
audit trails.

User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

RFID


ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Radwag XA 5Y.M.A Microbalances

Precision Microbalance

The XA M.A Series is a high- precision balance that features a 10-inch display and a hotspot feature for use on any connected device. It also includes a smart min weight feature, an ionizer for sample charge neutralization, and offers two-point adjustment for
enhanced precision.

Widgets

Our display system goes beyond conventional balance sheets, offering an array of interactive widgets that provide real-time updates.

With a user-friendly interface, our display seamlessly integrates diverse data streams, empowering you to make informed decisions and maintain optimal conditions for your
weighing needs.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

21 CFR Part 11

We offer a laboratory balance that fully complies with 21 CFR Part 11/ EU GMP Annex 11, providing full data security, electronic signatures, validations, electronic records, and
audit trails.

User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

RFID


ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Datasheet
Maximum capacity [Max] 6/21  g
Minimum load 0.1  mg
Readability [d] 1/2  µg
Verification unit [e] 1  mg
Tare range -21  g
Standard repeatability [5% Max] 1.3  µg
Standard repeatability [Max] 3.5  µg
Standard minimum weight (USP) 2.6  mg
Standard minimum weight (U=1%, k=2) 0.26  mg
Permissible repeatability [5% Max] 2  µg
Permissible repeatability [Max] 5  µg
Linearity ±9  µg
Eccentric load deviation 15  µg
Sensitivity time drift 1×10⁻⁶/Year×Rt
Stabilization time ~3.5  s
Adjustment internal (automatic)
OIML Class I
Leveling system automatic - Reflex Level System
Display 10″ touchscreen
Weighing chamber doors automatic
Delivery components Mikrowaga, weighing pan, weighing pan shield, power supply, automatic pipette calibration adapter: (base, bottom ring, glass vessel, pipette calibration adapter, evaporation ring, weighing pan, glass lid, mechanical closing cover, protecting screw), brush, fabric dust cover.
Weighing chamber dimensions 199×170×217  mm
Weighing pan dimensions ø26  mm
Packaging dimensions 750×492×595  mm
Net weight 14.5  kg
Gross weight 18.9  kg
Protection class IP 43
Communication interface USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply Adapter:      100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Waga:          12 – 15V DC 1.4A  max*
Operating temperature +10 — +40  °C
Operating  temperature change rate ±0.3°C/1h (±1°C/8h)
Relative humidity change rate ±1%/h (±4%/8h)
Relative humidity 40% — 80%

Functions
